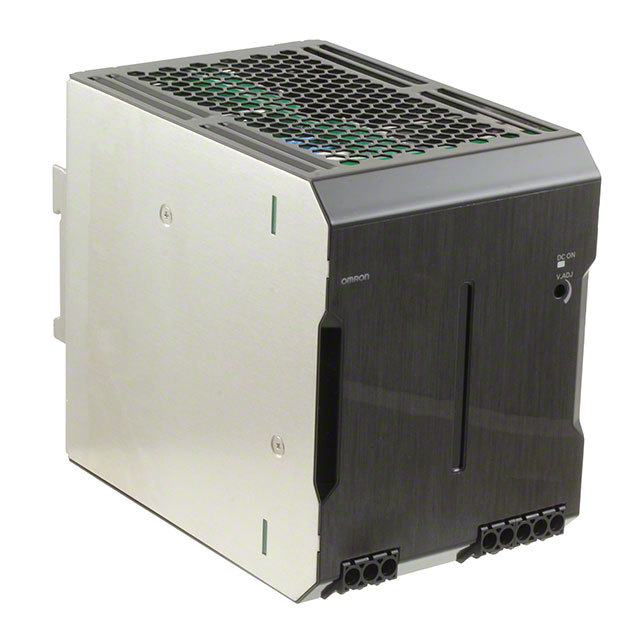

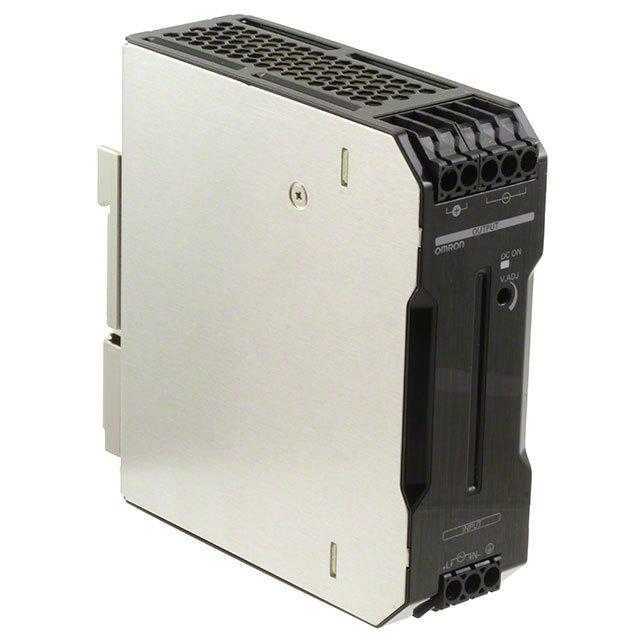

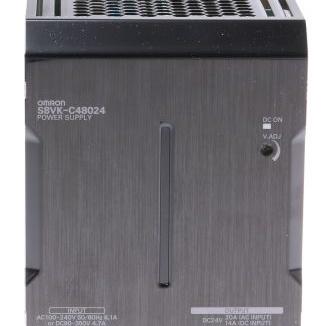

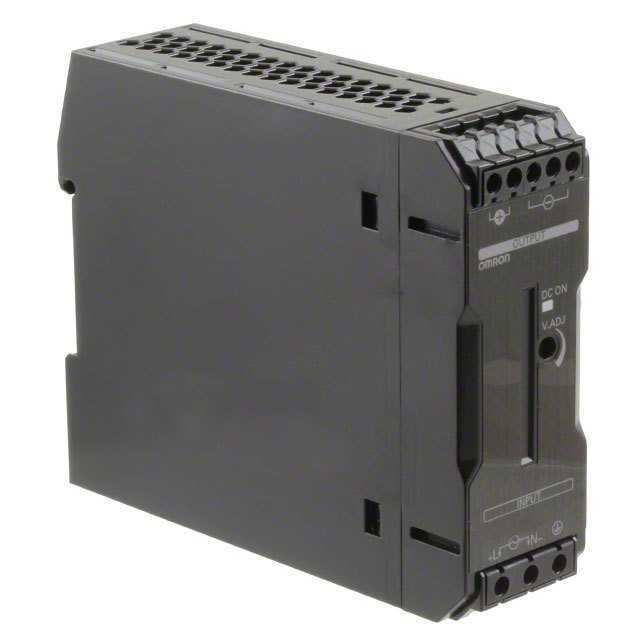

S8VK-C (60/120/240/480-W Models)
PLC controller DIN Rail Power Supplies 60W - 120W 24VDC 5A 100-240VAC S8VK-C 60/120/240/480W Switching power supply
Cost-effective Single Phase Power SupplyUniversal input and Safety standardsfor worldwide applicationsSpace-saving Compact Design• Universal input for worldwide applications:100 to 240 VAC (85 to 264 VAC)• DC input can be available: 90 to 350 VDC• Operation temperature range: –25 to 60 °C• Compact Dimension for small space• Flexible installation by special mounting brackets• Safety standards:UL508/60950-1, CSA C22.2 No.107.1/60950-1EN50178, EN60950-1• EMS: Conform to EN61204-3EMI: EN55011 Class A• Three years WarrantyNote: Three years warranty conditions: Rated input voltage, 80% load,Ambient operating temparature: 40 °C, Standard mounting
Derating Curve60, 120, 240, 480 W
Overvoltage ProtectionConsider the possibility of an overvoltage and design the system sothat the load will not be subjected to an excessive voltage even if thefeedback circuit in the Power Supply fails. If an excessive voltage thatis approximately 130% of the rated voltage or more is output, theoutput voltage is shut OFF. Reset the input power by turning it OFFfor at least three minutes and then turning it back ON again.
Two phases application for Single phase modelsFor All Single phase Models, S8VK-CBasically OMRON single phase power supply can be used on twophases of a 3–phase-system when some of conditions satisfy likebelow.1. The supplying voltage is below the maximum rated input.OMRON Power supply allows the input voltage equivalent or lessthan 240 VAC+10%.Please confirm the input voltage between two lines if the inputvoltage satisfies this condition before connecting.2. The external protector is needed on N input line to secure a safety.N line has no protection of a fuse internally.An appropriate fuse or circuit breaker should be connected on Ninput line like the following.
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
Q&A
1. How to obtain the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.
2. What is your delivery time?
This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.
3. What are your payment terms?
Factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the mode of transportation?
It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
5. How do you help our business establish a long-term and good relationship?
We maintain good quality and competitive prices to ensure that our customers benefit.
2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
