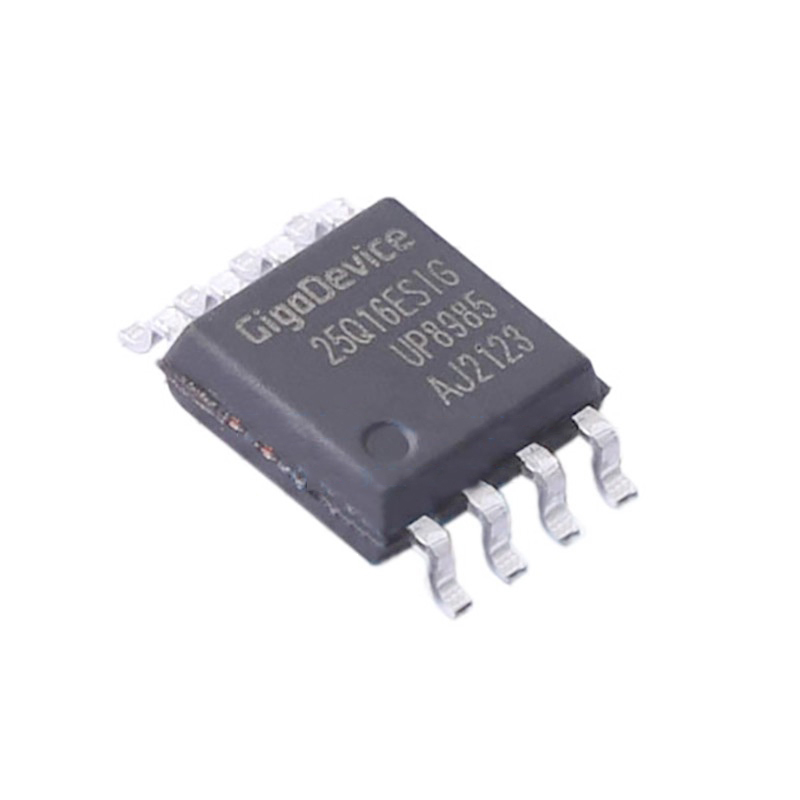

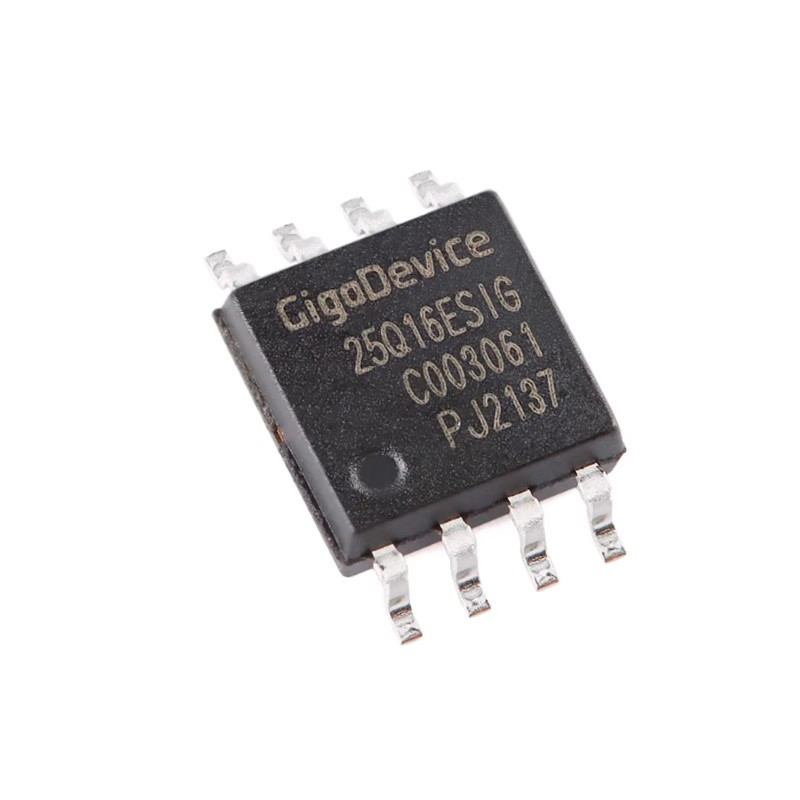

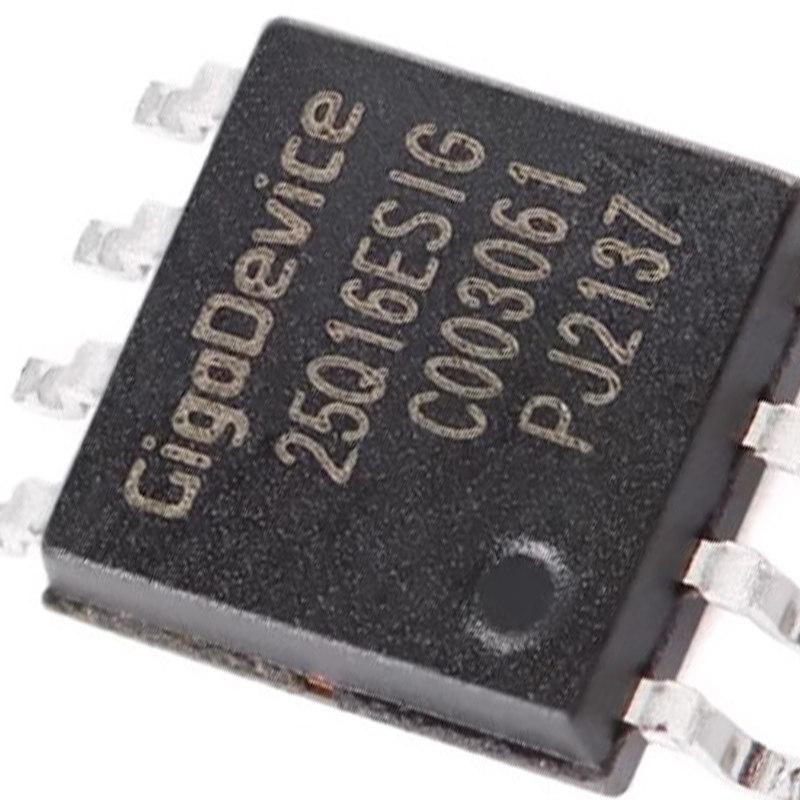

NOR Flash 16Mbit 2Mx8 133MHz SPI-Quad I/O SOP-8 Memory Data Storage GD25Q16ESIGR
FEATURES
◆ 16M-bit Serial Flash ◆ Fast Program/Erase Speed
- 2048K-Byte - Page Program time: 0.4ms typical
- 256 Bytes per programmable page - Sector Erase time: 45ms typical
- Block Erase time: 0.15s/0.25s typical
◆ Standard, Dual, Quad SPI - Chip Erase time: 6s typical
- Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#
- Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD# ◆ Flexible Architecture
- Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 - Uniform Sector of 4K-Byte
- Uniform Block of 32/64K-Byte
◆ High Speed Clock Frequency
- 133MHz for fast read with 30PF load ◆ Low Power Consumption
- Dual I/O Data transfer up to 266Mbits/s - 11μA typical standby current
- Quad I/O Data transfer up to 532Mbits/s - 1μA typical deep power down current
◆ Software/Hardware Write Protection ◆ Advanced Security Features
- Write protect all/portion of memory via software - 128-bit Unique ID for each device
- Enable/Disable protection with WP# Pin - Serial Flash Discoverable parameters (SFDP) register
- Top/Bottom Block protection - 2x1024-Byte Security Registers With OTP Locks
◆ Endurance and Data Retention ◆ Single Power Supply Voltage
- Minimum 100,000 Program/Erase Cycles - Full voltage range: 2.7-3.6V
- 20-year data retention typical
◆ Package Information
◆ Allows XiP (eXecute in Place) Operation - SOP8 150mil
- High speed Read reduce overall XiP instruction fetch time - SOP8 208mil
- Continuous Read with Wrap further reduce data latency to - USON8 (3x2mm, 0.45mm thickness)
fill up SoC cache - USON8 (3x4mm)
- USON8 (4x4mm, 0.45mm thickness)
- WSON8 (6x5mm)
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
Q&A
1. How to obtain the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.
2. What is your delivery time?
This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.
3. What are your payment terms?
Factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the mode of transportation?
It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
5. How do you help our business establish a long-term and good relationship?
We maintain good quality and competitive prices to ensure that our customers benefit.
2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
