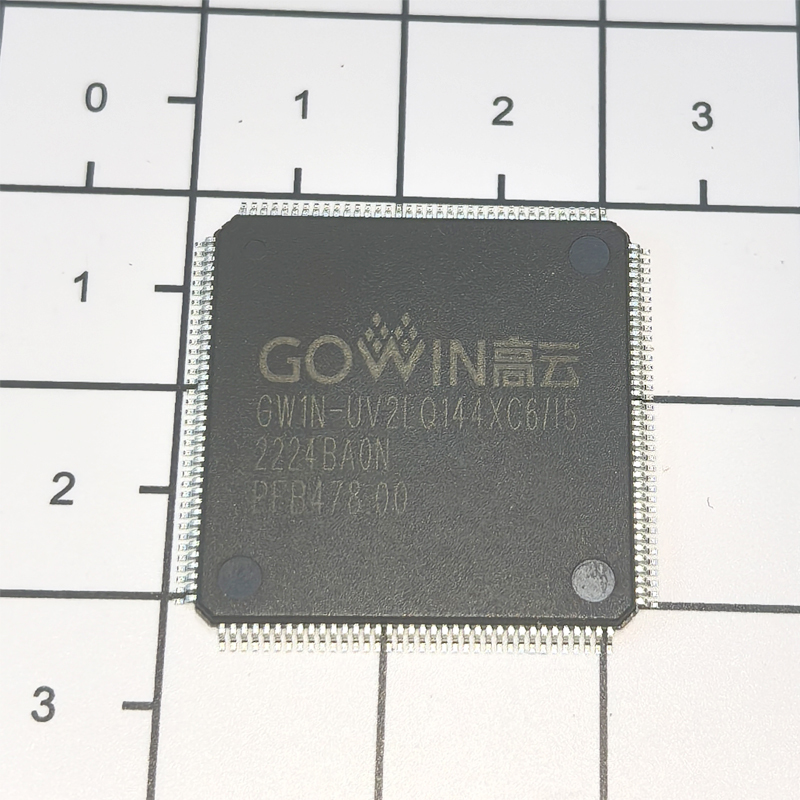

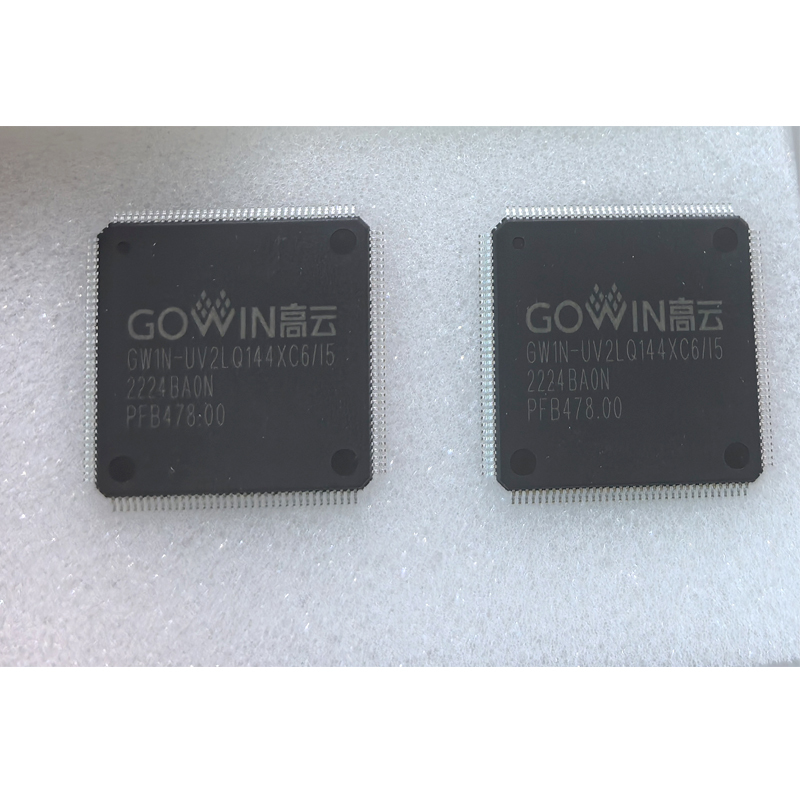

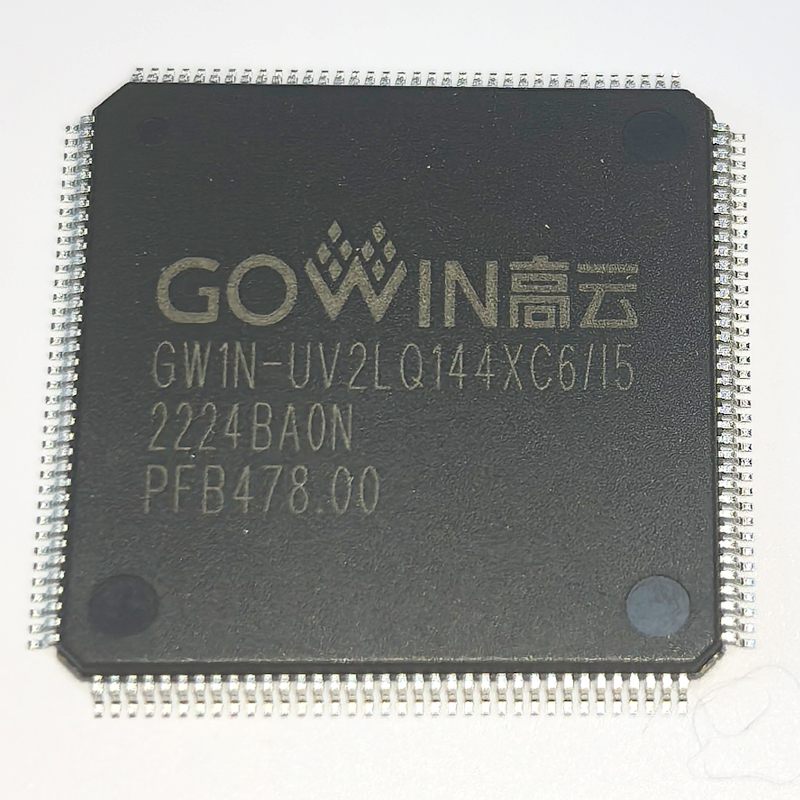

Programmable Logic Device CPLD/FPGA Controller Chip GW1N-UV2LQ144XC6/I5
The GW1N FPGA of Gowin Semiconductor belongs to the LittleBee family Series 1 and has relatively high performance
Rich logical resources, supporting multiple I/O level standards, with embedded block static random access memory and digital
The signal processing module, phase-locked loop resources, and embedded Flash resources make it a non-volatile product
The FPGA products feature low power consumption, instant startup, low cost, high security and compact size
It features small size, rich packaging types, and convenient and flexible use.
Gao Yun Semiconductor provides a new generation of FPGA hardware development environment independently developed for the market, which can
It is capable of completing one-stop tasks such as FPGA synthesis, layout, routing, generating data stream files and downloading.
1.1 Feature Overview
<s:1> Low power - 55nm embedded flash process - LV version [1] : supports 1.2V nuclear power
Pressure-uv version: Supports device VCC/
VCCIO/ VCCX is powered by a single power supply
Note!
[1] GW1N-1S only supports the LV version; - Supports dynamic opening/closing of the clock
<s:1> User flash memory resources (GW1N-1 and.
GW1N-1S) -NOR Flash - 100,000 write cycles - data storage capacity of over 10 years
(+85℃) - Optional data input and output bit width
8/16/32 - Page storage space: 256-Byte - Standby current: 3μA - Page write time: 8.2ms
<s:1> User flash memory resources (GW1N
1P5/2/4/9) -NOR Flash - 10,000-write life cycle - data retention capacity of over 10 years
(+85℃) - Data bit width: 32 - GW1N-1P5/2 Storage capacity:
96K bits - GW1N-4 storage capacity: 256K
Bit-gw1n-9 storage capacity: 608K
bits - Page erasure capability: 2,048 bytes - Word programming time: ≤16μs - Page erasure time: ≤120
Configure flash memory resources (GW1N-1 and
GW1N-1S) -NOR Flash - 100,000 write cycles - data storage capacity of over 10 years
(+ 85 ℃)
<s:1> Configure flash memory resources (GW1N
1P5/2/4/9) -NOR Flash - 10,000-write life cycle - data retention capacity of over 10 years
(+ 85 ℃)
Hardcore MIPI D-PHY RX(GW1N-2) - supports MIPI DSI and MIPI CSI
2 RX device interfaces - CS42, CS42H, QN48H
IO in QN88 and MG132H packages
Bank6 supports MIPI D-PHY RX-MIPI transmission rate with single-channel reach
2Gbps - Supports up to four data channels and one
A clock channel
<s:1> GPIO supports MIPI D-PHY RX/TX - supports MIPI CSI-2 and MIPI
DSI, RX and TX device interfaces
The transmission rate can reach a single channel
1.2Gbps - Three IO types are available for selection:
TLVDS, ELVDS, MIPI IO
Supports multiple I/O level standards - LVCMOS33/25/18/15/12;
LVTTL33, SSTL33/25/18
I, SSTL33/25/18 II
"SSTL15; HSTL18 I
HSTL18 II, HSTL15 I;
PCI, LVDS25, RSDS
LVDS25E, BLVDSE
MLVDSE, LVPECLE
RSDSE - Provides input signal hysteresis options - provides output signal drive current options - offers an independent Bus for each I/O
Keeper, pull-up/pull-down resistor and
Open Drain output option - Supports hot plugging
<s:1> High-performance DSP module (GW1N-4/9) - high-performance digital signal processing capability - supports 9 x 9, 18 x 18, 36 x
A 36-bit multiplication operation and a 54bit accumulation
Adder - Supports multiple multiplier cascades - Supports register pipelines and bypass work
It can - pre-add operation to achieve filter function - support bucket-shaped shift registers
Youdaoplaceholder0 Rich basic logic units - 4 input LUT(LUT4) - supports shift registers and distributed memory
Storage device
Supports multiple modes of static random access memory - supports dual-port, single-port and pseudo
Dual-port mode - Supports byte write enabling
Youdaoplaceholder0 Flexible PLL resources - achieve clock doubling, frequency division and phase
Shift - Global clock network resources
Built-in Flash programming - Instant startup - support for secure bit operations - support AUTO BOOT and DUAL
BOOT programming mode
<s:1> Programming configuration mode
Supports JTAG configuration mode - Supports background upgrade - Supports up to 7 types
GowinCONFIG configuration mode
AUTOBOOT, SSPI
MSPI, CPU, SERIAL
DUAL BOOT, I2C Slave
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
