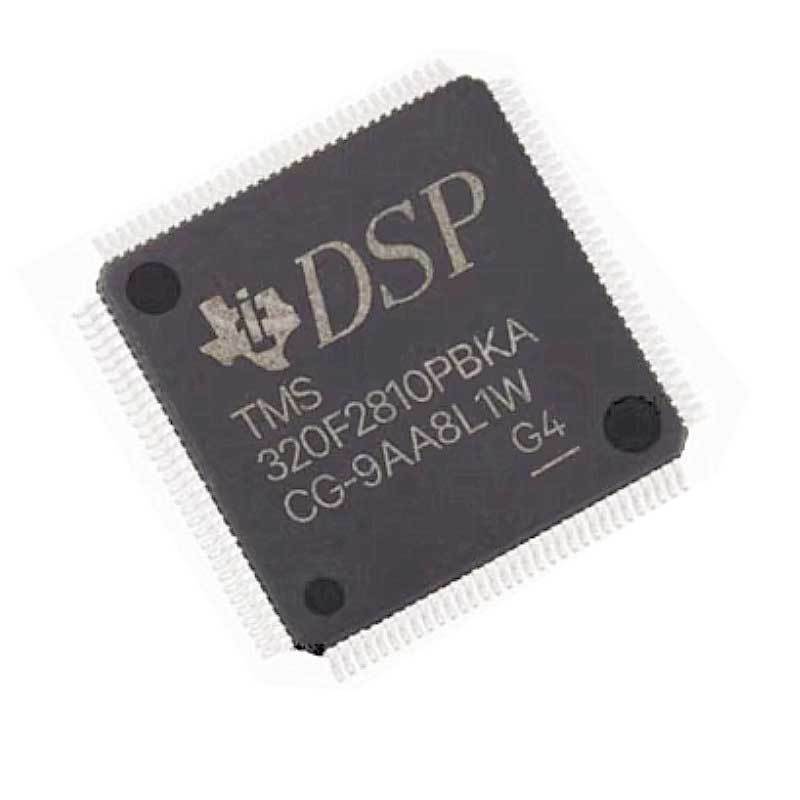

DSP DSC Digital Signal Processors Controllers 32-bit high-performance static CMOS ontroller TMS320F2810PBKA
Features • High-performance static CMOS technology - 150MHz (6.67ns cycle time) - Low power consumption (1.8V core voltage at 135MHz and 1.9V core voltage at 150MHz) 3.3V I/O) Design • Supports JTAG boundary scan - IEEE Standard 1149.1-1990 IEEE standard test access port and boundary Scan architecture • High-performance 32-bit CPU (TMS320C28x) - 16 × 16 and 32 × 32 MAC Operation - 16 × 16 Dual MAC - Harvard bus architecture - Linked computing - Fast interrupt response and handling - Unified memory programming Model - 4M linear program/data address range - Efficient code (using C/C++ and assembly language) TMS320F24x/LF240x processor source code compatible • On-chip memory - up to 128K × 16 flash memory (four 8K × 16 and six 16K × 16 sectors) - 1K × 16 OTP ROM - L0 and L1: Two 4K × 16 single-cycle access RAM(SARAM) -H0 blocks: One 8K × 16 SARAM -M0 and M1 blocks 2 pieces of 1K × 16 SARAM• Boot ROM (4K × 16) - with software boot mode - standard mathematical table • External interface (F2812) - total memory greater than 1M × 16 - programmable waiting state - programmable read/write timer - three independent chips are optional Byte order Little-endian byte order • Clock and system control - On-chip oscillator - Watchdog timer module • Three external interrupts • Peripheral Interrupt Extension (PIE) block supporting 45 peripheral interrupts • Three 32-bit CPU timers • 128-bit security key/lock - Protecting flash memory /OTP and L0/L1 SARAM - Prevents firmware reverse engineering • Motor Control Peripherals - Two event managers (EVA, EVB) - Compatible with 240xA devices • Serial Port Peripherals - Serial peripheral Interface (SPI) - Two Serial communication interfaces (SCI) Standard UART - Enhanced Controller Local Area Network (eCAN) - Multi-Channel buffered Serial Port (McBSP)• 12-bit ADC, 16-channel - 2 × 8-channel input multiplexer - Two sampling-hold - Single/synchronous conversion - Fast conversion rate 80ns/12.5MSPS• Up to 56 general-purpose I/O (GPIO) pins • Advanced simulation features - analysis and breakpoint functionality - real-time debugging via hardware • Development tools include - ANSI C/C++ compiler/assembler/connector - Code Composer Studio™IDE - DSP/BIOS™ - JTAG Scan Controller - IEEE Standard 1149.1-1990 IEEE Standard Test Access Port and Boundary Scan Architecture • Low Power mode, energy saving - Supports idle, standby, and shutdown modes - Disable separate peripheral clocks
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
Q&A
1. How to obtain the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.
2. What is your delivery time?
This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.
3. What are your payment terms?
Factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the mode of transportation?
It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
5. How do you help our business establish a long-term and good relationship?
We maintain good quality and competitive prices to ensure that our customers benefit.
2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
Product Tags:
|
|

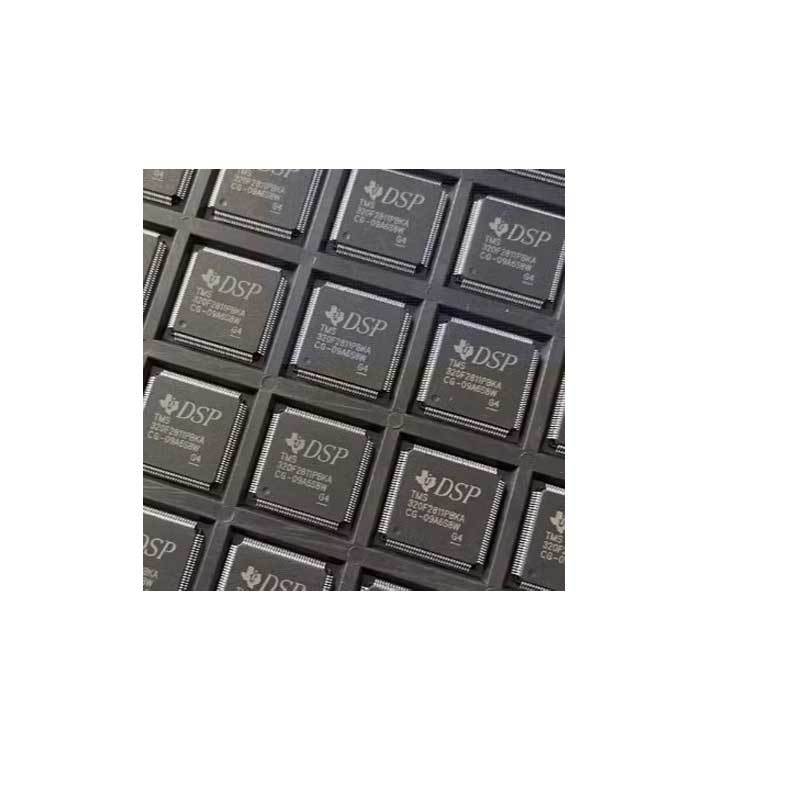

DSP DSC Digital Signal Processors Controllers 32bit Static CMOS TMS320F2810PBKA Images
|
