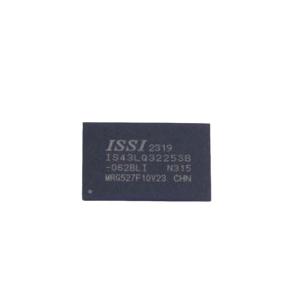

Dynamic Random Access Memory DRAM 8Gb x16 x2 channel Mobile LPDDR4/LPDDR4X IS43LQ32256B-062BLI
FEATURES
•
Configuration:
- 256Mb x16 x 2 channels - 8 internal banks per channel
• Low-voltage Core and I/O Power Supplies
VDD1 = 1.70-1.95V
VDD2 = 1.06-1.17V
VDDQ = 1.06-1.17V (LPDDR4)
VDDQ = 0.57-0.65V (LPDDR4X)
•
•
LVSTL(Low Voltage Swing Terminated Logic) I/O
Interface
Internal VREF and VREF Training
• Dynamic ODT :
DQ ODT :VSSQ Termination
CA ODT :VSS Termination
• Max. Clock Frequency : 1866MHz (3733Mbps)
• 16n Pre-fetch DDR architecture
• Single data rate (multiple cycles) command/
address bus
• Bidirectional/differential data strobe per byte of
data (DQS/DQS#)
• Programmable and on-the-fly burst lengths
(BL=16, 32)
• ZQ Calibration
• Operation
Industrial
Temperature
(TC = -40°C to 95°C)
Automotive, A1 (TC = -40°C to 95°C)
Automotive, A2 (TC = -40°C to 105°C)
Automotive, A3 (TC = -40°C to 125°C)
• Clock-Stop capability
any published information and before placing orders for products.
DESCRIPTION
The IS43/46LQ32256B and IS43/46LQ32256BL are
8Gbit CMOS LPDDR4 SDRAM. The device is orga
nized as 2 channels per device, and each channel is
8-banks and 16-bits. This product uses a double-da
ta-rate architecture to achieve high-speed operation.
The double data rate architecture is essentially a 16N
prefetch architecture with an interface designed to
transfer two data words per clock cycle at the I/O pins.
This product offers fully synchronous operations
referenced to both rising and falling edges of the clock.
The data paths are internally pipelined and 16n bits
prefetched to achieve very high bandwidth.
• On-chip temperature sensor whose status
can be read from MR4

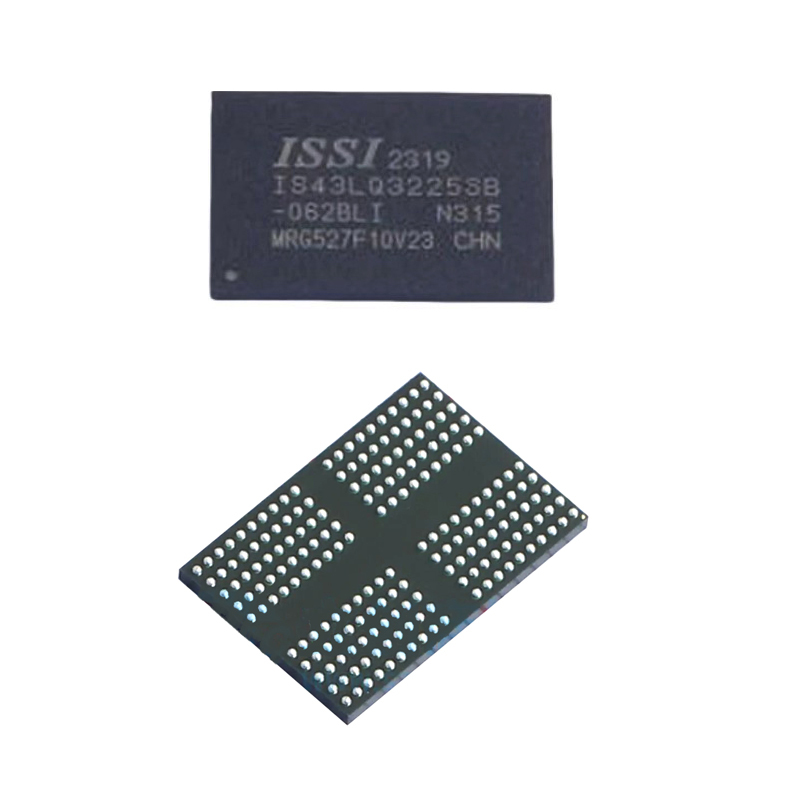

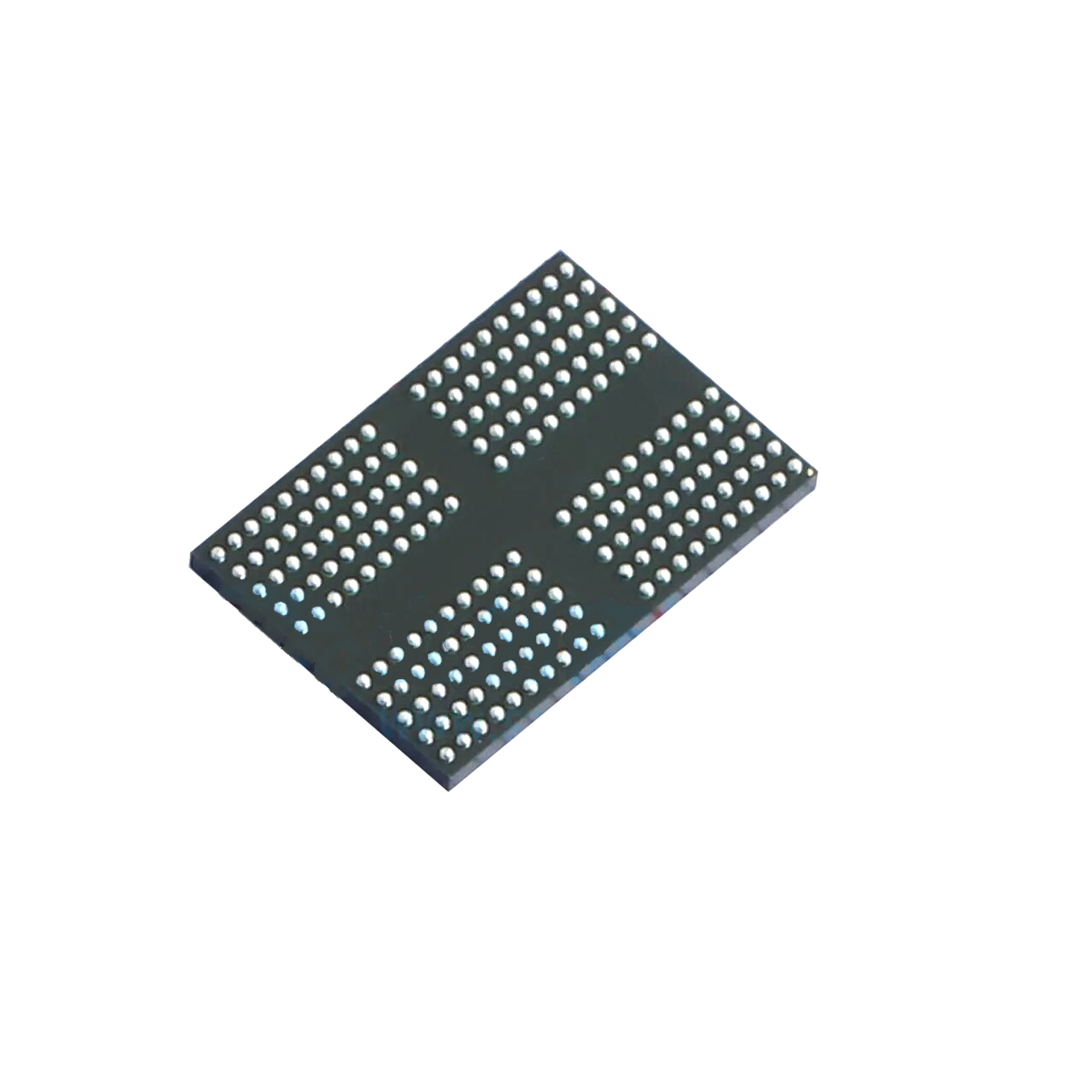

• 200-ball x32 BGA Package ( 10x14.5 mm)
| Product Catalogue | Memory > Dynamic Random Access Memory (DRAM) |
| Universal packaging | FBGA-200 |
| RoHS | Compliance |
| Installation method | Surface mount installation |
| Operating temperature | -40°C to 95°C |
| Length * Width * Height | |
| Application grade | |
| Packaging method | |
| Minimum working power supply voltage | |
| Organization | 256Mb x16 |
| Data bus width | |
| Interface type | |
| Storage capacity | 8Gb |
| Maximum supply current | |
| Maximum working power supply voltage | |
