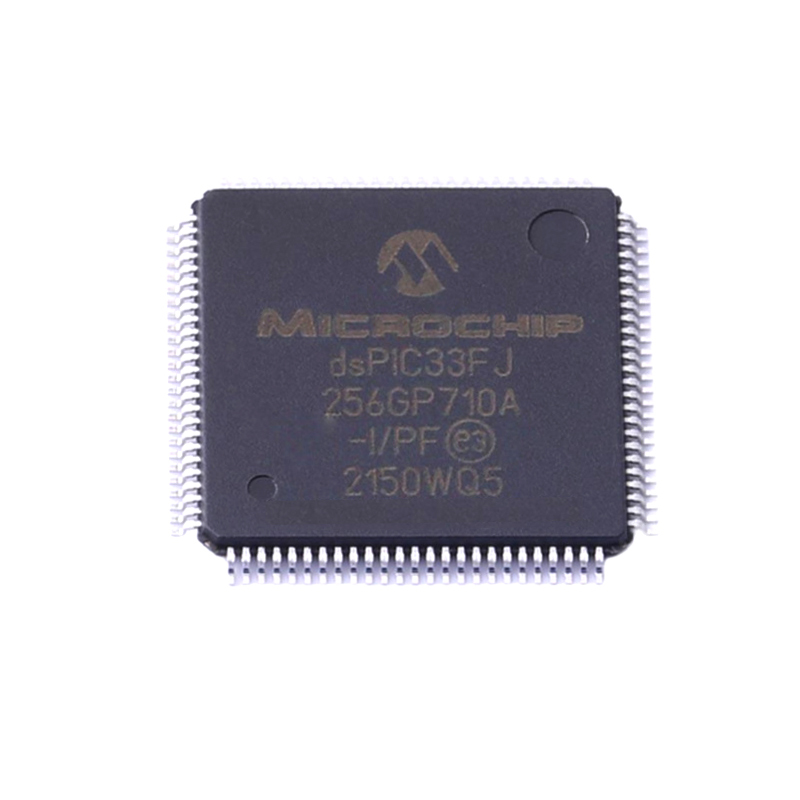

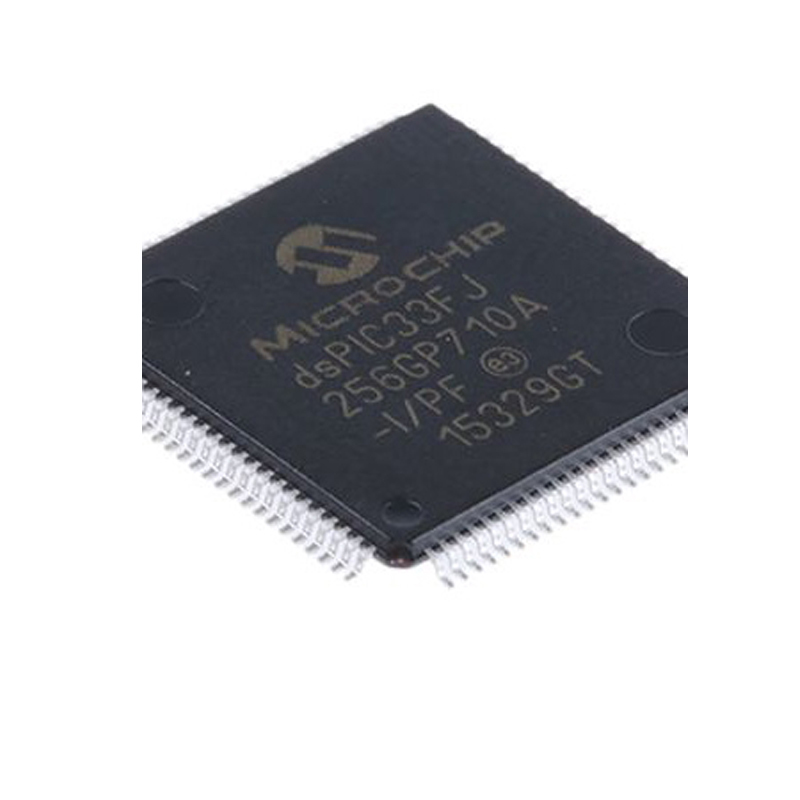

DSP DSC 16-bit Digital Signal Controllers 256KB Flash and 30KB SRAM with Advanced Analog processors DSPIC33FJ256GP710A-I/PF
Operating Conditions
• 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS
• 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
Core: 16-bit dsPIC33F CPU
• Code-efficient (C and Assembly) architecture
• Two 40-bit wide accumulators
• Single-cycle (MAC/MPY) with dual data fetch
• Single-cycle mixed-sign MUL plus hardware
divide
Clock Management
• ±2% internal oscillator
• Programmable PLLs and oscillator clock sources
• Fail-Safe Clock Monitor (FSCM)
• Independent Watchdog Timer (WDT)
• Fast wake-up and start-up
Power Management
• Low-power management modes (Sleep, Idle,
Doze)
• Integrated Power-on Reset and Brown-out Reset
• 2.1 mA/MHz dynamic current (typical)
• 50 μA IPD current (typical)
Advanced Analog Features
• Two ADC modules:- Configurable as 10-bit, 1.1 Msps with four
S&H or 12-bit, 500 ksps with one S&H- 18 analog inputs on 64-pin devices and up to
32 analog inputs on 100-pin devices
• Flexible and independent ADC trigger sources
Timers/Output Compare/Input Capture
• Up to nine 16-bit timers/counters. Can pair up to
make four 32-bit timers.
• Eight Output Compare modules configurable as
timers/counters
• Eight Input Capture modules
Communication Interfaces
• Two UART modules (10 Mbps)- With support for LIN 2.0 protocols and IrDA®
• Two 4-wire SPI modules (15 Mbps)
• Up to two I2C™ modules (up to 1 Mbaud) with
SMBus support
• Up to two Enhanced CAN (ECAN) modules
(1 Mbaud) with 2.0B support
• Data Converter Interface (DCI) module with I2S
codec support
Input/Output
• Sink/Source up to 10 mA (pin specific) for stan
dard VOH/VOL, up to 16 mA (pin specific) for
non-standard VOH1
• 5V-tolerant pins
• Selectable open drain, pull-ups, and pull-downs
• Up to 5 mA overvoltage clamp current
• External interrupts on all I/O pins
Qualification and Class B Support
• AEC-Q100 REVG (Grade 1 -40ºC to +125ºC)
• AEC-Q100 REVG (Grade 0 -40ºC to +150ºC)
• Class B Safety Library, IEC 60730
Debugger Development Support
• In-circuit and in-application programming
• Two program and two complex data breakpoints
• IEEE 1149.2-compatible (JTAG) boundary scan
• Trace and run-time watch
