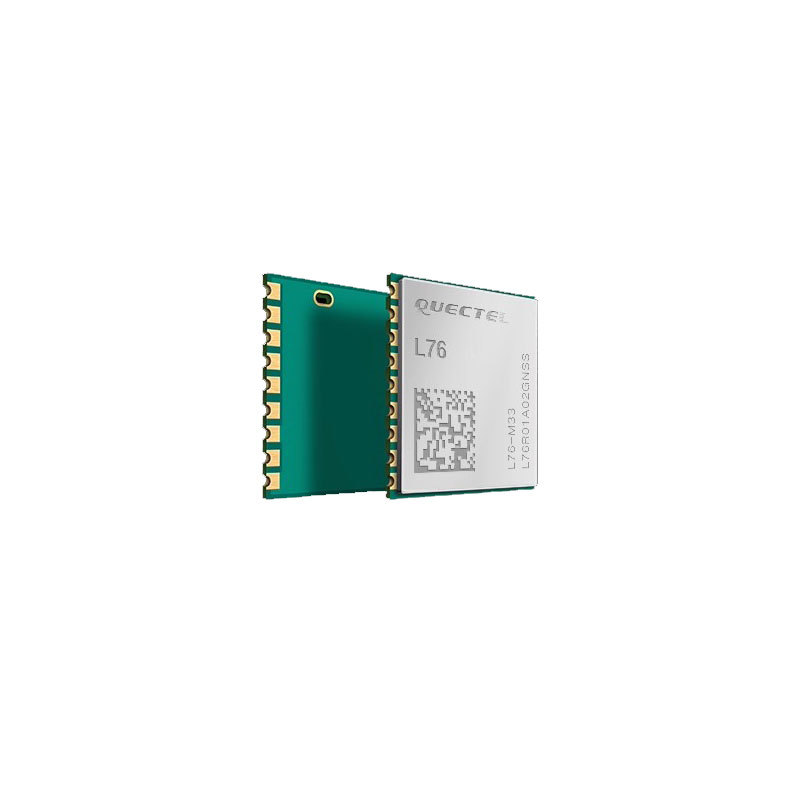

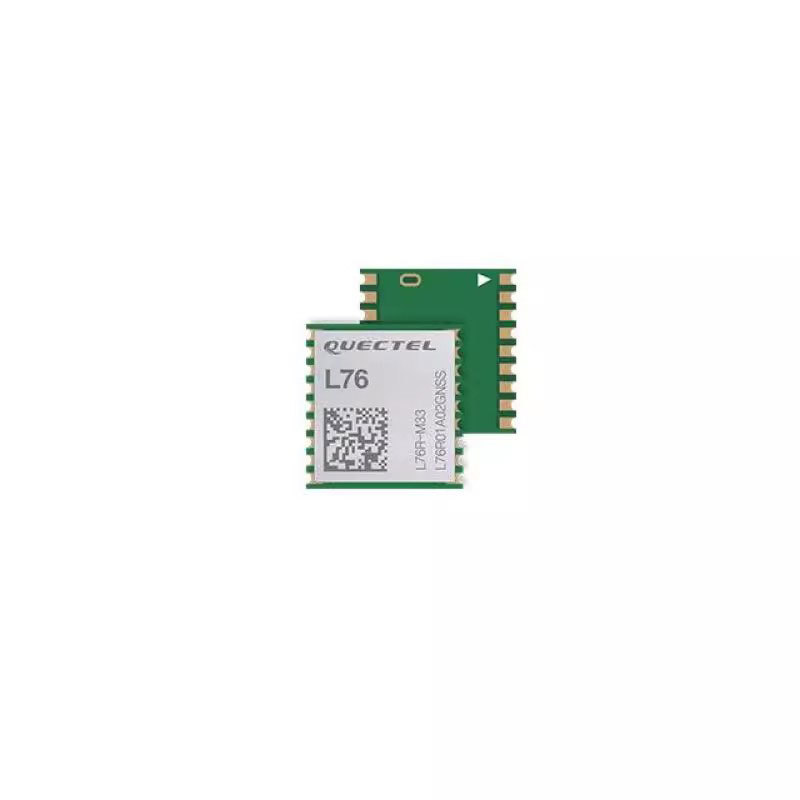

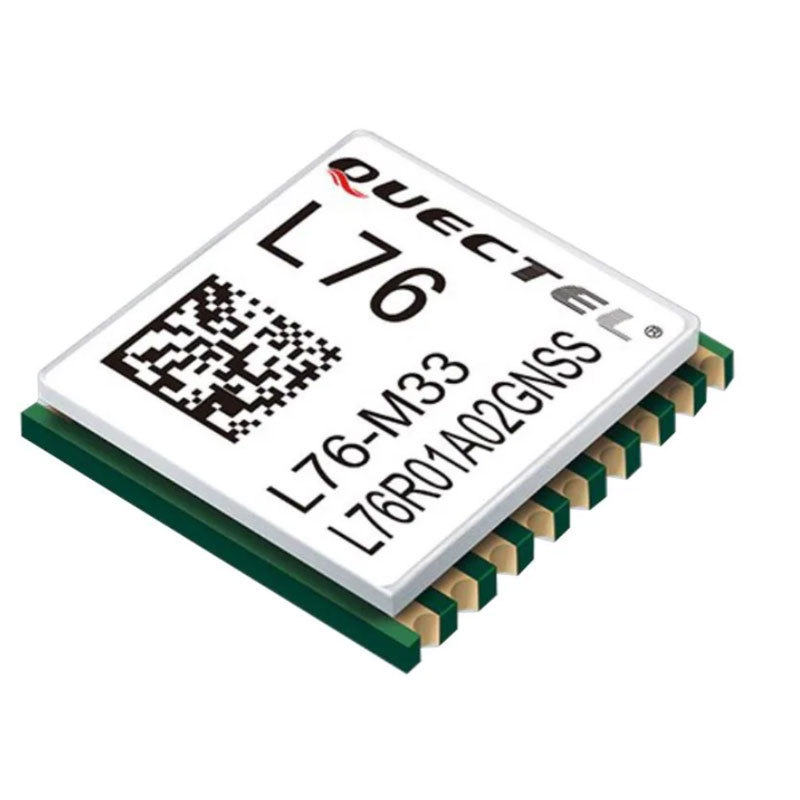

GNSS GPS Modules Single Band RTC Compact GNSS Module L76-M33
L76, the extremely compact GNSS module, is a concurrent GNSS receiver with multiple GNSS systems. It providessimultaneous GPS, GLONASS, BeiDou, Galileo and QZSS open service L1 reception capability. With 33 tracking channels, 99acquisition channels, and 210 PRN channels, L76 can acquire and track any mix of multiple satellite signals.Compared with using GPS only, enabling multiple GNSS systems generally increases the number of visible satellites, reducesthe time to first fix and increases positioning accuracy, especially when driving in rough urban environments.Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L76 achieves thehighest performance and fully meets the industrial standard. Additional feature of embedded logger function called LOCUSallows L76 to log position information to internal flash memory at default intervals of 15 seconds and provide typically morethan 16 hours log capacity without adding cost.Its super performance makes L76 ideal for automotive, industrial PDA, consumer and industry applications. Extremely lowpower consumption makes it easier to be applied to power sensitive devices, especially portable applications.
Extremely compact size, 10.1mm × 9.7mm ×2.5mmMulti-GNSS engine for GPS, GLONASS, BeiDou, Galileo and QZSSEASY™, an advanced AGPS technology without external memoryUltra low tracking power consumption, 18mAAlwaysLocate™, an intelligent algorithm for power savingLOCUS, an embedded logger solution with no need for host andexternal flashHigh sensitivity, -165dBm @Tracking, -148dBm @Acquisition99 acquisition/ 33 tracking channels and 210 PRN channelsSupport DGPS, SBAS (WAAS/ EGNOS/ MSAS/ GAGAN)Anti-Jamming, Multi-tone Active Interference CancellerBalloon mode, for high altitude up to 80kmPPS VS. NMEA can be used for time service
GNSS FeaturesL1 Band Receiver (1575.42MHz):Channel: 33 (Tracking)/ 99 (Acquisition)/210 (PRN)C/A CodeSBAS: WAAS, EGNOS, MSAS, GAGANHorizontal Position Accuracy:Autonomous: <2.5m CEPVelocity Accuracy:Without Aid: <0.1m/sAcceleration Accuracy:Without Aid: <0.1m/s²Timing Accuracy:1PPS Out: 10nsReacquisition Time: <1sTTFF @-130dBm with EASY™:Cold Start: <15sWarm Start: <5sHot Start: <1sTTFF @-130dBm without EASY™:Cold Start: <35sWarm Start: <30sHot Start: <1sSensitivity:Acquisition: -148dBmTracking: -165dBmReacquisition: -160dBmDynamic Performance:Maximum Altitude: Max. 18000mMaximum Velocity: Max. 515m/sMaximum Acceleration: 4GInterfacesSerial Interface:UART: Adjustable 4800bps~115200bpsDefault: 9600bpsUpdate Rate:1Hz (Default), up to 10HzI/O Voltage:2.7V~2.9VProtocols:NMEA 0183PMTKGeneral FeaturesTemperature Range:-40°C ~ +85°CDimensions:10.1mm × 9.7mm × 2.5mmWeight:Approx. 0.6gPower ManagementPower Supply:2.8V~4.3VPower Acquisition:21mA (GPS)25mA (GPS+GLONASS)23mA (GPS+BeiDou)Power Tracking:15mA (GPS)18mA (GPS+GLONASS)18mA (GPS+BeiDou)Power Saving:Typ. 2.6mA @AlwaysLocate™ (Note1)7uA @Backup Mode500uA @Standby ModePeriodic ModeAntenna Type:Active or PassiveAntenna Power:External or Internal VCC_RFNote1: Measured in GPS+GLONASS System underOutdoor Static Mode.

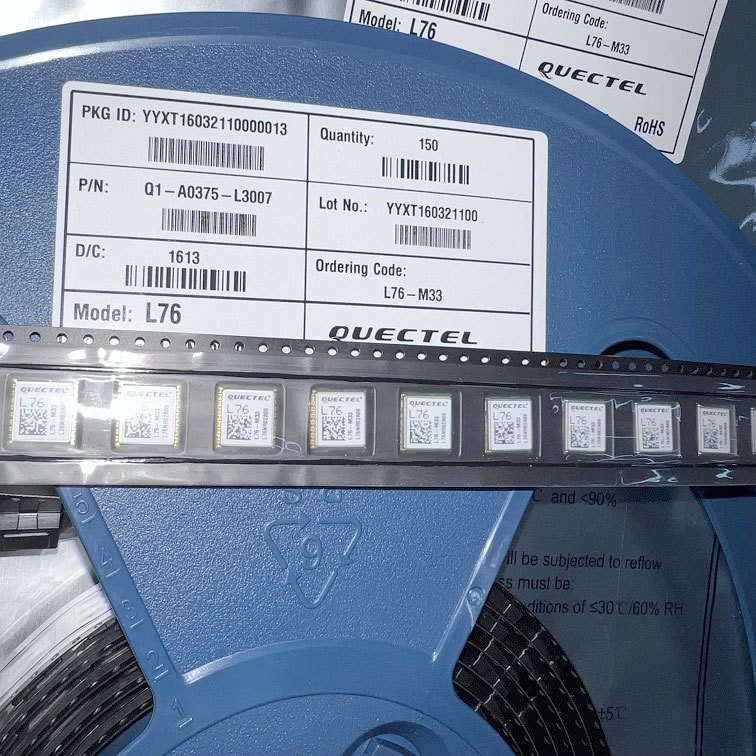

Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
Q&A
1. How to obtain the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.
2. What is your delivery time?
This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.
3. What are your payment terms?
Factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the mode of transportation?
It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
5. How do you help our business establish a long-term and good relationship?
We maintain good quality and competitive prices to ensure that our customers benefit.
2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
