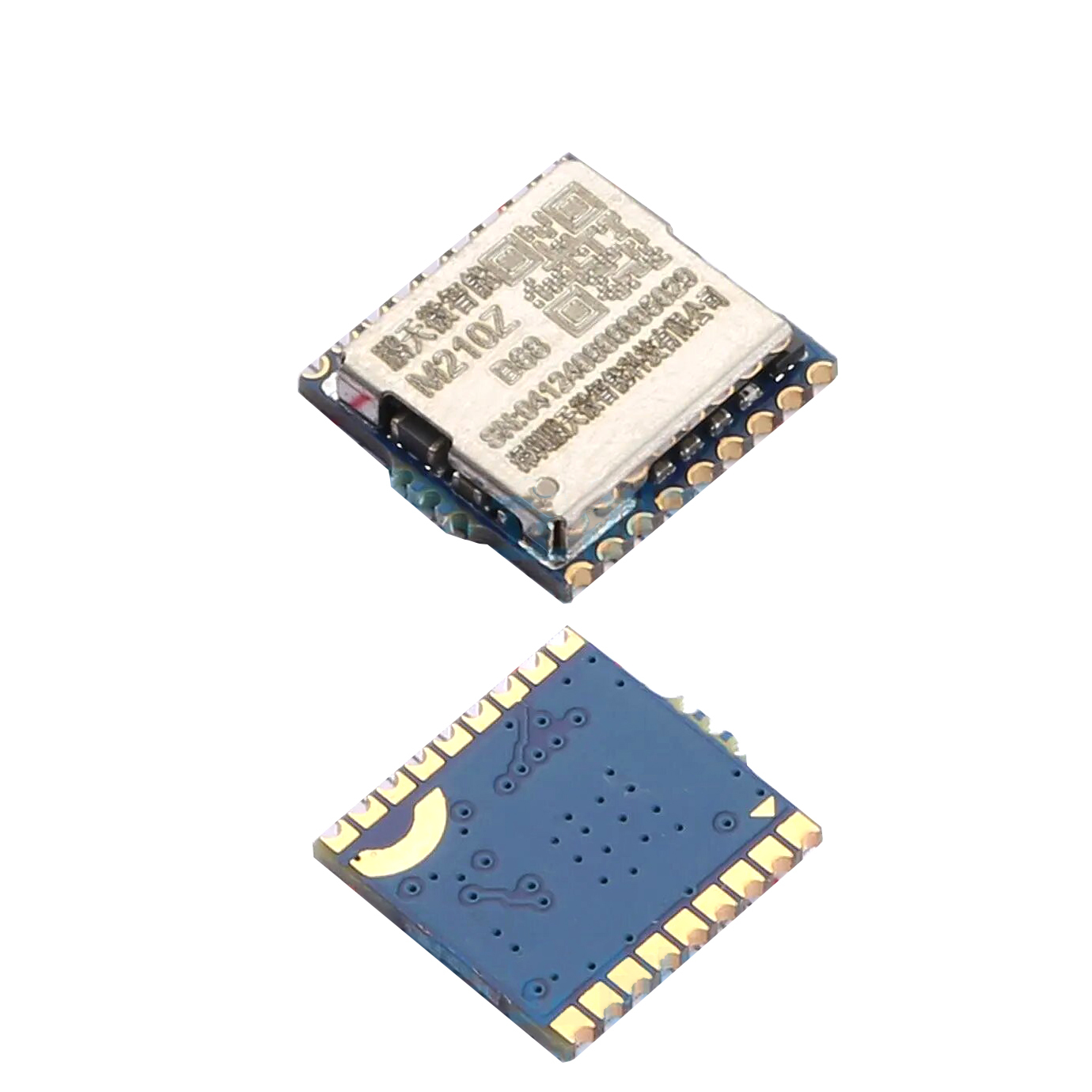

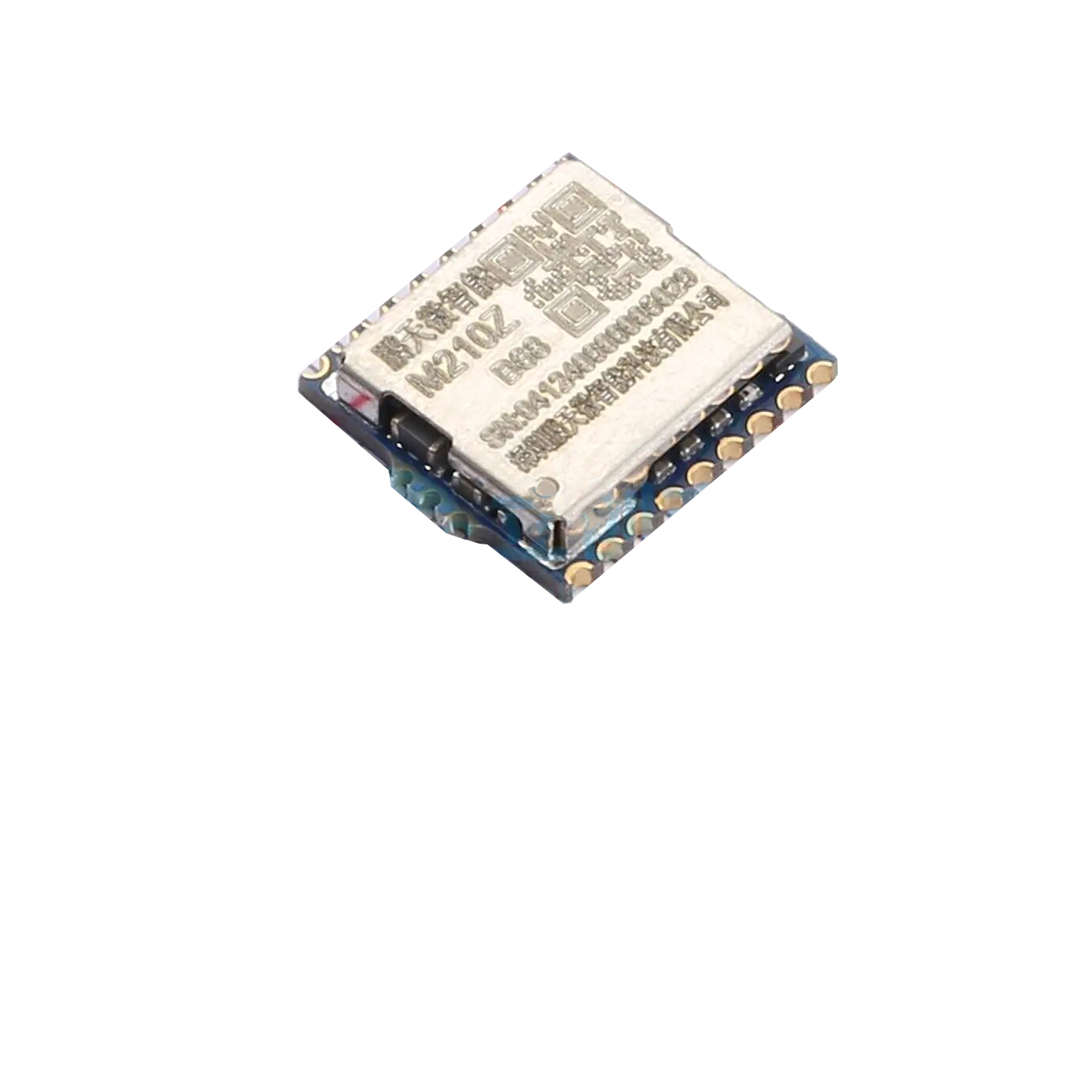

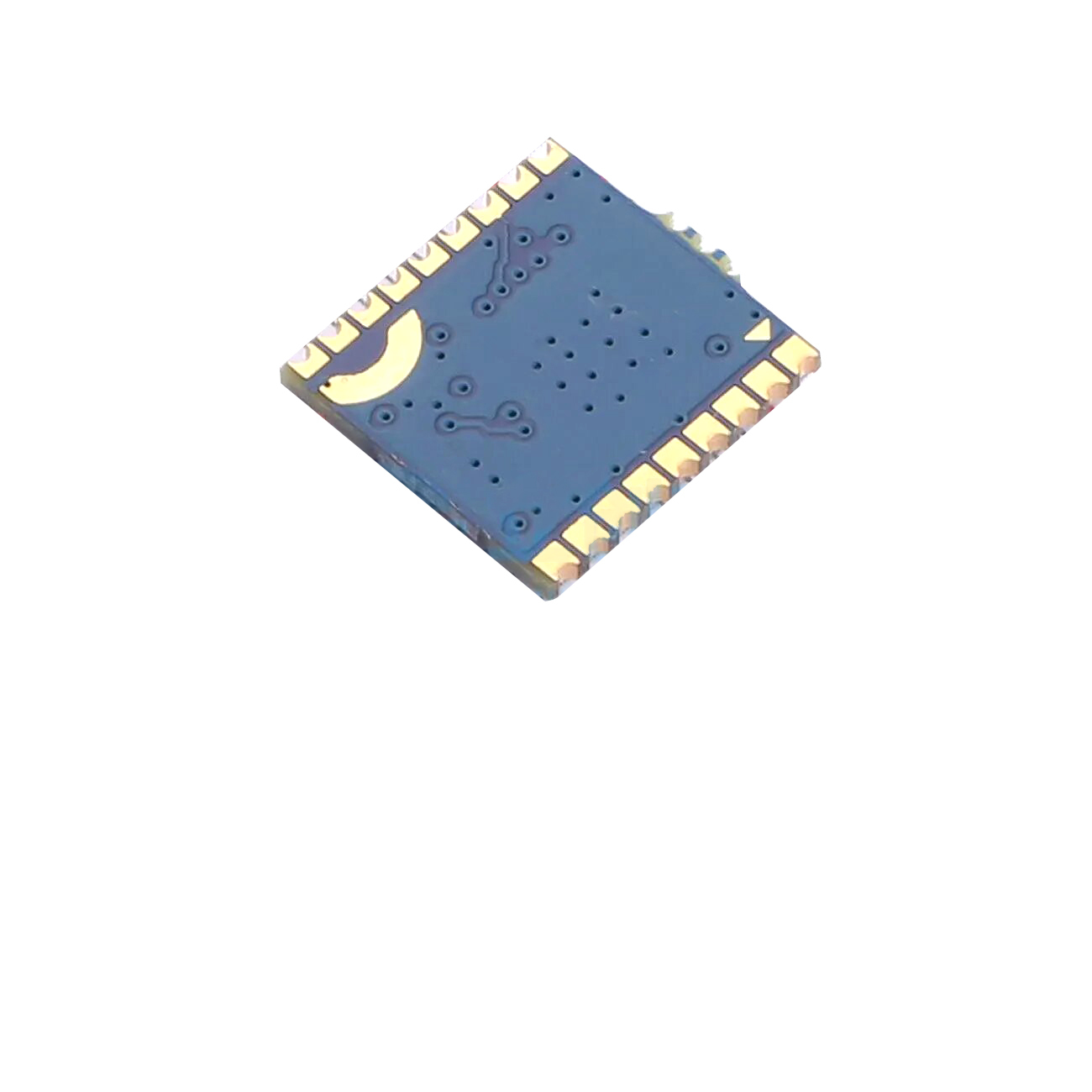

High-performance single-mode dual-frequency point satellite navigation receiver GPS module M210Z-B68
Module Introduction
The M210Z-B68 is designed based on the AT6668B of Zhongke Microelectronics
A high-performance single Beidou single-mode dual-frequency point satellite navigation receiver
Module, module integrates RF front-end LNA and SAW, digital base
It is equipped with a core, Beidou signal processing engine, power management and other functions.
This module supports multiple Beidou satellite frequencies and is compatible with China's Beidou
No. 2 B1I (1561.098 MHz) and No. 3 B1C (1575.42 MHZ
The MHz frequency band can achieve the effect of rapid satellite search and accurate positioning
Fruit.
1.2 Main Characteristics
Rapid positioning of single-mode dual-frequency points.
It supports Beidou-2/3, B1I and B1C.
It is equipped with active antenna detection and protection.
<s:1> Power Management
Integrated DCDC and LDO internally;
Supports 3.3V single power supply (using internal DCDC)
Or supply power to the RTC circuit with a single power supply of 1.8V to 3.3V;
The <s:1> module integrates active antenna power supply pins and is inside
Integrated antenna detection circuit.
The RTC and backup circuit power supply can be as low as 1.4V.
Youdaoplaceholder0 Power consumption:
BDS continuous operation: ~35mA@3.3V.
Standby: 8uA (@3.3V).
1.3 Application Fields
"Vehicle positioning and navigation.
Youdaoplaceholder0 Mobile phones, tablets, handheld devices
Embedded positioning device
<s:1> Wearable devices
Module packaging
1Hz(maximum 10Hz)
Package size: LCC 10.1mm × 9.7mm ×
The 2.3 mm
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
Q&A
1. How to obtain the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.
2. What is your delivery time?
This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.
3. What are your payment terms?
Factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the mode of transportation?
It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
5. How do you help our business establish a long-term and good relationship?
We maintain good quality and competitive prices to ensure that our customers benefit.
2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
