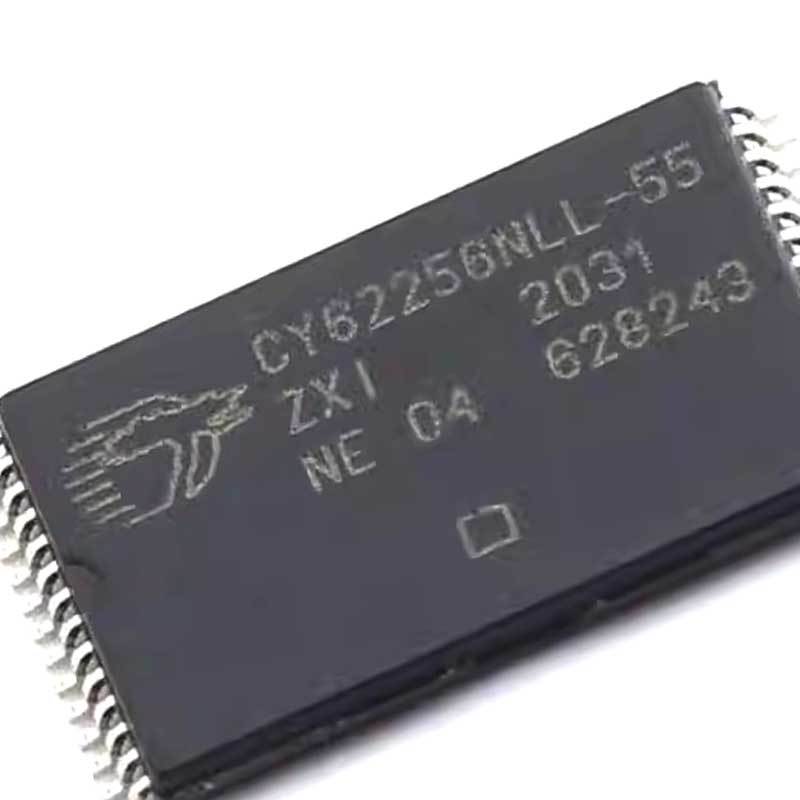

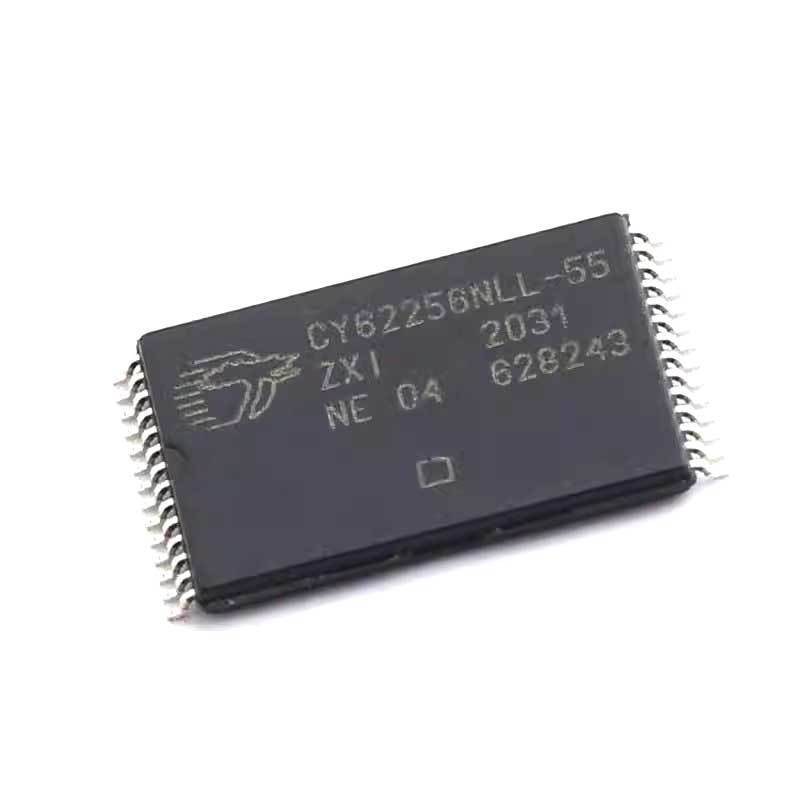

SRAM 256Kbit Static RAM High-performance COMS Static Random Access Memory CY62256NLL-55ZXIT
Features■ Temperature ranges❐ Commercial: 0 °C to +70 °C❐ Industrial: –40 °C to +85 °C❐ Automotive-A: –40 °C to +85 °C❐ Automotive-E: –40 °C to +125 °C■ High speed: 55 ns■ Voltage range: 4.5 V to 5.5 V operation■ Low active power❐ 275 mW (max)■ Low standby power (LL version)❐ 82.5 W (max)■ Easy memory expansion with CE and OE Features■ TTL-compatible inputs and outputs■ Automatic power-down when deselected■ CMOS for optimum speed and power■ Available in Pb-free and non Pb-free 28-pin (600-mil) PDIP,28-pin (300-mil) narrow SOIC, 28-pin TSOP I, and 28-pinreverse TSOP I packages
Functional DescriptionThe CY62256N is a high performance CMOS static RAMorganized as 32K words by 8 bits. Easy memory expansion isprovided by an active LOW chip enable (CE) and active LOWoutput enable (OE) and tristate drivers. This device has anautomatic power-down feature, reducing the power consumptionby 99.9 percent when deselected.An active LOW write enable signal (WE) controls thewriting/reading operation of the memory. When CE and WEinputs are both LOW, data on the eight data input/output pins(I/O0 through I/O7) is written into the memory location addressedby the address present on the address pins (A0 through A14).Reading the device is accomplished by selecting the device andenabling the outputs, CE and OE active LOW, while WE remainsinactive or HIGH. Under these conditions, the contents of thelocation addressed by the information on address pins arepresent on the eight data input/output pins.The input/output pins remain in a high impedance state unlessthe chip is selected, outputs are enabled, and write enable (WE)is HIGH.For a complete list of related documentation, click here.
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
Q&A
1. How to obtain the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.
2. What is your delivery time?
This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.
3. What are your payment terms?
Factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the mode of transportation?
It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
5. How do you help our business establish a long-term and good relationship?
We maintain good quality and competitive prices to ensure that our customers benefit.
2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
