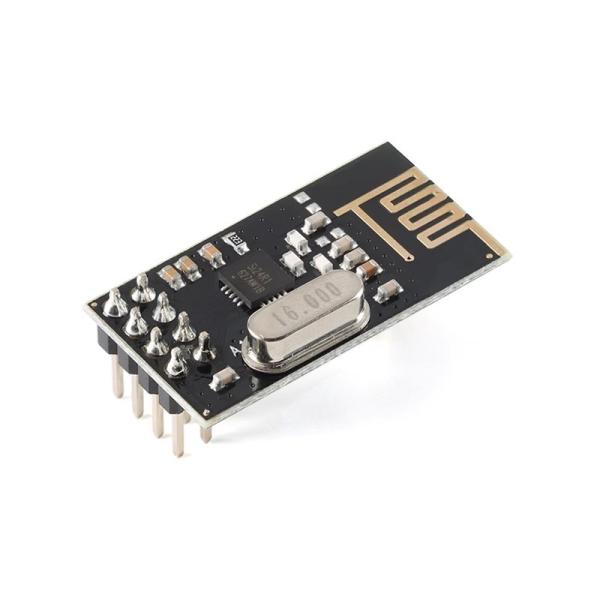

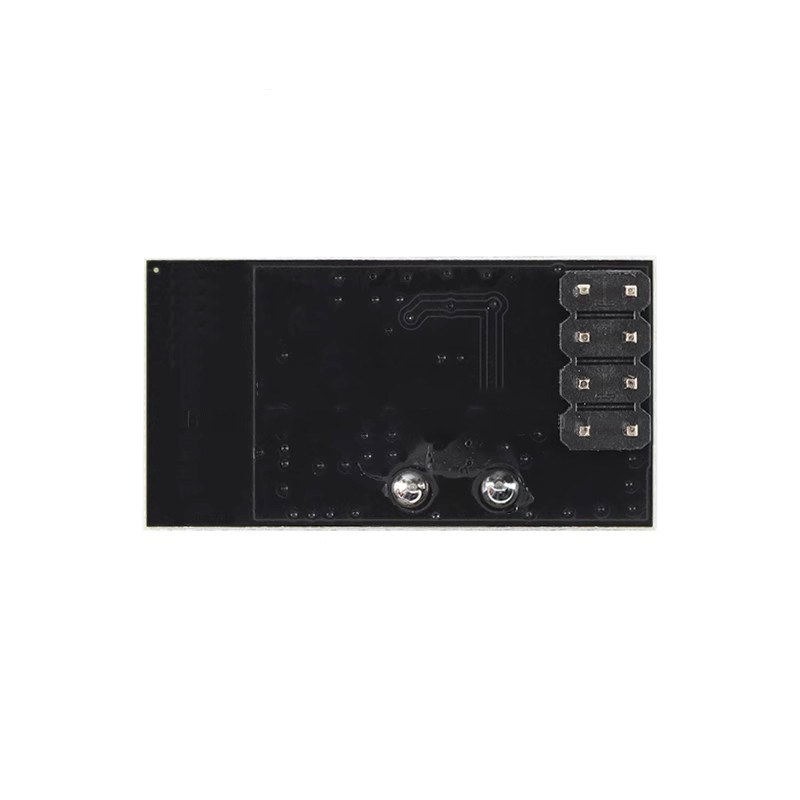

2.4G Wireless Transceiver Module RF Module NF-01-S is suitable for wireless mouse wireless remote control
Characteristics
·DIP-8 ultra-small size package, simple and easy to use
Supports general modulation methods such as CFSK/FSK
Supports data rates of 2Mbps/1Mbps/250Kbps
· Internally integrated LDO with high PSRR
Wide power supply voltage range :1.9-3.6V· Channels :126 channels with a 1MHz bandwidth. Receiving sensitivity :-96dBm@250kbps
Maximum transmission power :7dBm
It adopts a four-wire SPI interface with a rate of up to 10MHz and integrates an intelligent ARQ baseband protocol engine internally
Hardware interruption output for data transmission and reception
Supports 1-bit RSSI output
Overview
NF-01-S is a 2.4G wireless module with a 5mW power, featuring high air speed (up to 2Mbps), SPI interface, high stability, high cost performance, and all industrial-grade components. It has been mass-produced and is suitable for a variety of application scenarios.
NF-01-S can be widely applied in various Internet of Things (iot) scenarios, suitable for wireless keyboards and mice, wireless remote controls, motion-sensing devices, active RFID, NFC, low-power AD hoc network wireless sensor network nodes, etc. It is an ideal solution for iot applications.
NF-01-S adopts DIP-8 packaging. Whether for learning or mass production, it can be quickly integrated into existing products and is very convenient to use
Product technical specifications
Module model
"Encapsulation"
"Size"
Communication interface
Air speed
Spectrum range
Antenna form
Maximum transmission power
Receiving sensitivity
NF-01-S
DIP-8
28.6* 15.3mm
SPI(with a maximum speed of up to 10Mbps)
Adjustable in three levels from 250k to 2Mbps (250kbps, 1Mbps, 2Mbps)
Adjustable from 2400MHz to 2525MHz, with a 1MHz step
On-board PCB antenna
7+1 dBm
-96dBm@250kbps
Transmission current :25mA(7dBm)
Average current
Receiving current :15mA(2Mbps)
Shutdown current :1.0uA(Shutdown mode)
Power supply range
Working temperature
Storage environment
1.9 to 3.6V, with a typical value of 3.3V
-20℃ to 85℃(It is recommended that the working temperature does not exceed 70℃
-20℃~90 ℃,<90%RH
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
