2.4ghz RF Radio Frequency Module Single Core Processor ESP32-C3-Mini-1-N4

The small-sized module supporting 2.4ghz Wi-Fi and Bluetooth ® 5 is equipped with the ESP32-C3 series chip RISC-V single-core processor RF module ESP32-C3-mini-1-N4

Characteristics

CPU and on-chip memory

• Built-in ESP32-C3FH4 or ESP32-C3FN4 chip

RISC-V 32-bit single-core microprocessor, with a maximum main frequency of 160MHz

• 384 KBROM

• 400KBSRAM (of which 16KB is dedicated to cache

• 8KBRTCSRAM

• 4MB sealed flash

Wi-Fi

• Supports IEEE802.11b /g/n protocols

The frequency range of the working channel center is 2412 to 2484MHz

It supports 20MHz and 40MHz bandwidths in the 2.4GHz band

Supports 1T1R mode with a data rate as high as 150Mbps

Wireless Multimedia (WMM

• Frame aggregation (TX/RXA-MPDU, TX/RX A-MSDU)

ImmediateBlock ACK

• Fragmentation and reorganization

defragmentation)

• Transmission opportunity (TXOP)

• Beacon Automatic Monitoring (Hardware TSF)

• 4× Virtual Wi-Fi interface

It also supports InfrastructureBSS

Station mode, SoftAP mode, Station + SoftAP mode

Style and hybrid mode

Please note that when the chip is scanned in Station mode, SoftAP signals are detected

The Dao will change simultaneously

• 802.11mc FTM

Bluetooth ®

• Low-power Bluetooth (Bluetooth LE) : Bluetooth 5

Bluetooth mesh

The supported rates are 125Kbps, 500Kbps, 1Mbps, and 2

Mbps

• Advertising Extensions

• Multiple Advertisement Sets

• ChannelSelection Algorithm #2

Wi-Fi and Bluetooth coexist and share the same antenna

Peripheral device

• Up to 15 GPIOs - 3 as strapping pins

SPI, UART, I2C, I2S, infrared remote control (remote

control peripheral), LED PWM controller, general

DMA controller, TWAI® controller (compatible with ISO11898-1)

That is, CAN specification 2.0, USB serial port /JTAG controller, temperature

Accuracy sensor, SAR analog-to-digital converter, universal timer, watch

Door dog timer

Module integrated components

• 40MHz integrated crystal oscillator

Antenna selection

• ESP32-C3-MINI-1: On-board PCB antenna

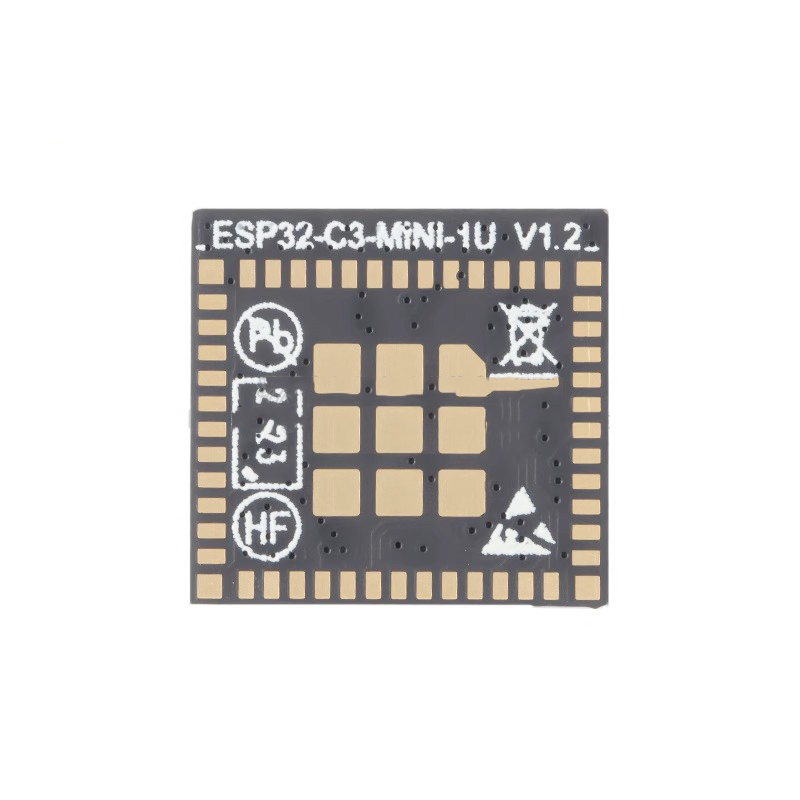

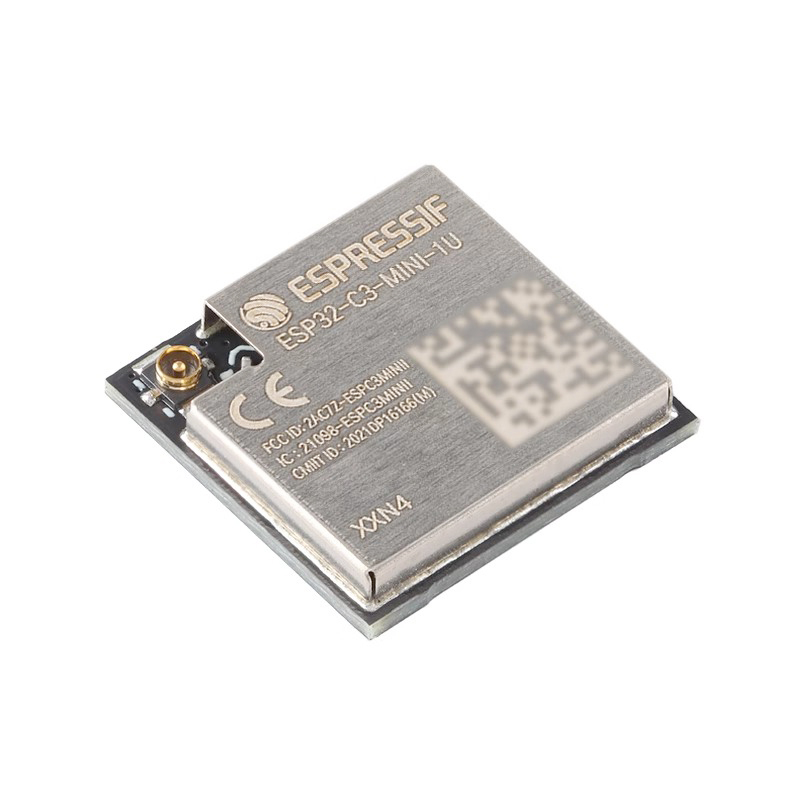

• ESP32-C3-MINI-1U: Connect to the external antenna via a connector

Working conditions

• Working voltage/Supply voltage: 3.0-3.6V

• Operating environment temperature: -85 ° C. Version module: -40 to 85°C to 105° C. Version module: -40 to 105°C

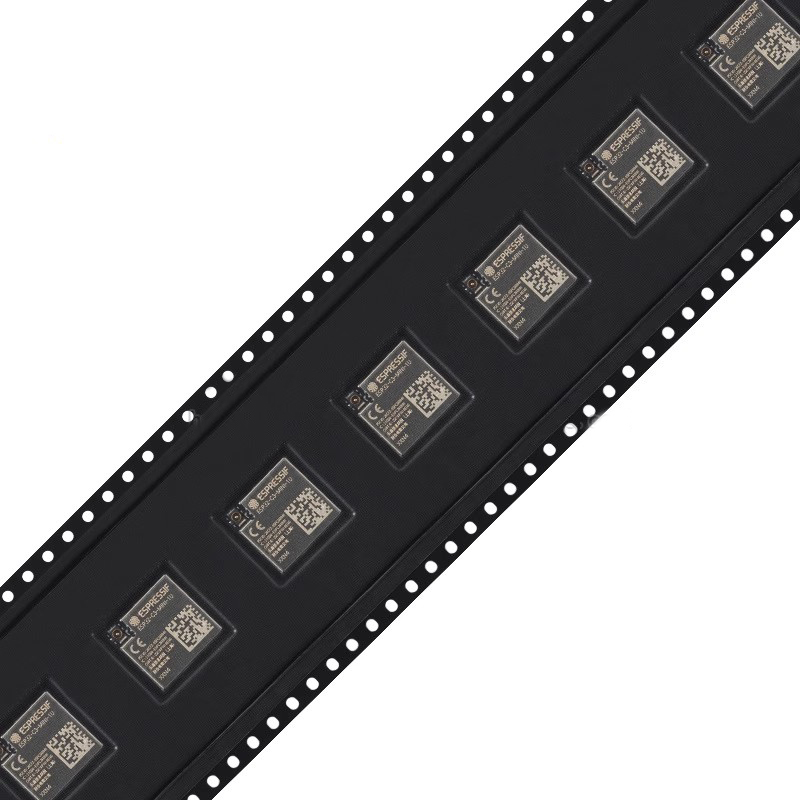

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
