All Network 4G Positioning Module CAT4 Communication EC20CEHDLG-MINIPCIE-CB

Internet of Things 4G all-network CAT4 communication network module EC20 GPS positioning EC20CEHDLG-MINIPCIE-CB

LTE Cat 4 module

Designed specifically for M2M and IoT applications

The EC20 R2.1 Mini PCIe is an LTE module that supports the standard interface of PCI Express Mini Card. It adopts LTE 3GPP Release 11 technology and supports the most

The maximum downlink rate is 150 Mbps and the maximum uplink rate is 50 Mbps. Meanwhile, in terms of packaging, it is compatible with Quectel's multi-network standard LTE Cat 4 EG25-G Mini

The PCIe module enables a smooth and effortless transition from 3G networks to 4G networks. The EC20 R2.1 Mini PCIe module is backward compatible with existing EDGE and

GSM/GPRS network to ensure normal operation in remote areas lacking 3G and 4G networks.

The EC20 R2.1 Mini PCIe supports multiple input/Output (MIMO) technology. Multiple receiving antennas can be used at the receiving end, allowing the signal to pass through more at the receiving end

Each antenna is used for reception, thereby reducing the bit error rate and improving the communication quality. Meanwhile, it combines high-speed wireless connection with built-in multi-constellation high-precision GNSS

(GPS/GLONASS/BeiDou/Galileo/QZSS) receiver, greatly improve the location accuracy and speed.

The EC20 R2.1 Mini PCIe is equipped with a rich array of network protocols, integrates multiple industrial standard interfaces, and offers a variety of operating system and software functions (applicable to Windows)

The USB drivers for operating systems such as 7/8/8/1/10, Linux, and Android have greatly expanded its application scope in the M2M field, such as central processing

Units, routers, data cards, tablet computers, security systems, and industrial-grade PDAs.

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Q&A

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit.

2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.

All network Positioning Module

4G GPS Positioning Module

EC20CEHDLG-MINIPCIE-CB

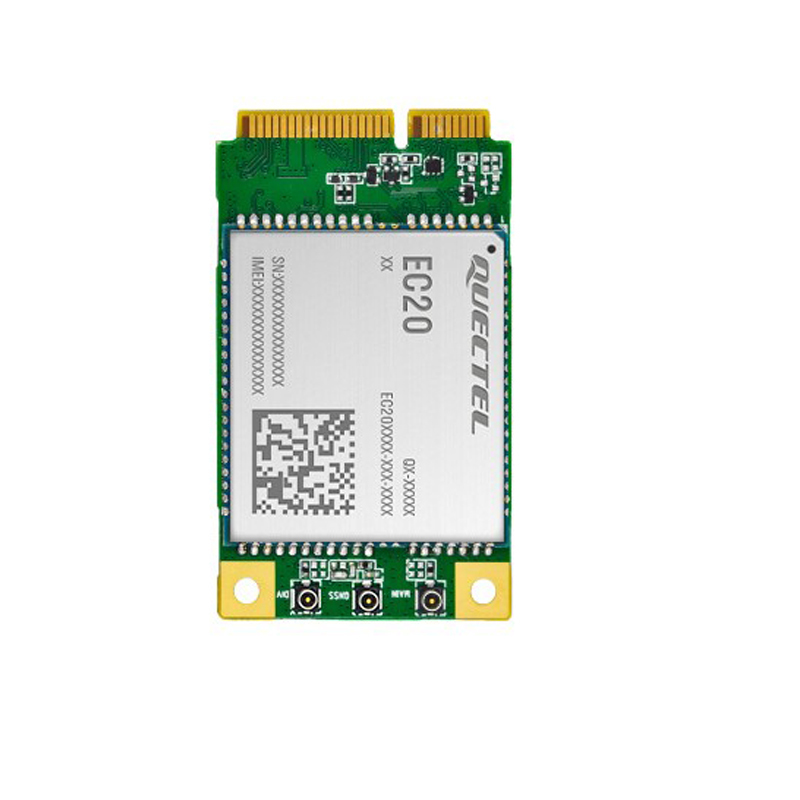

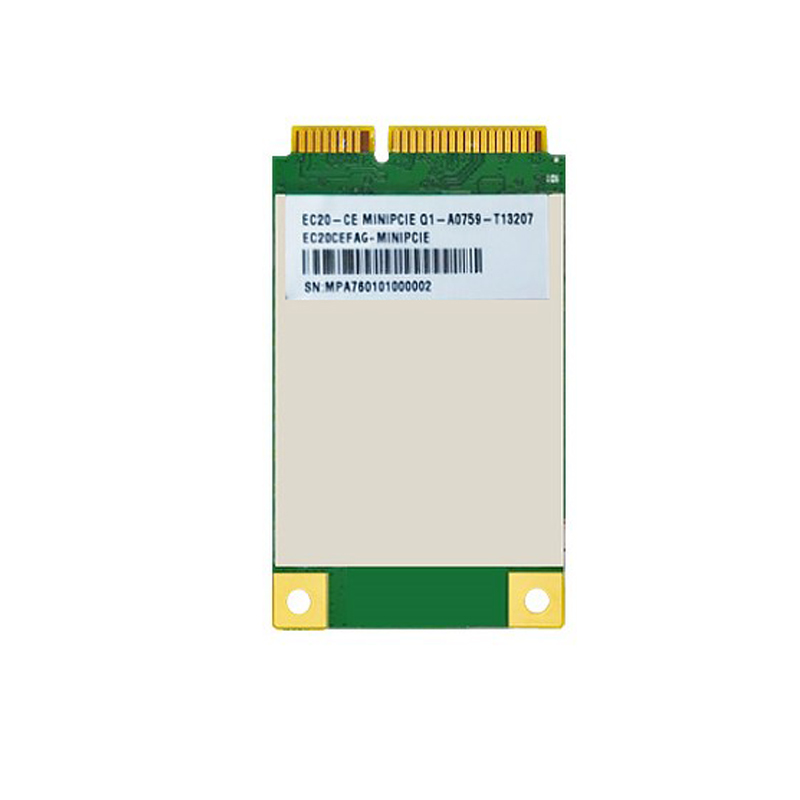

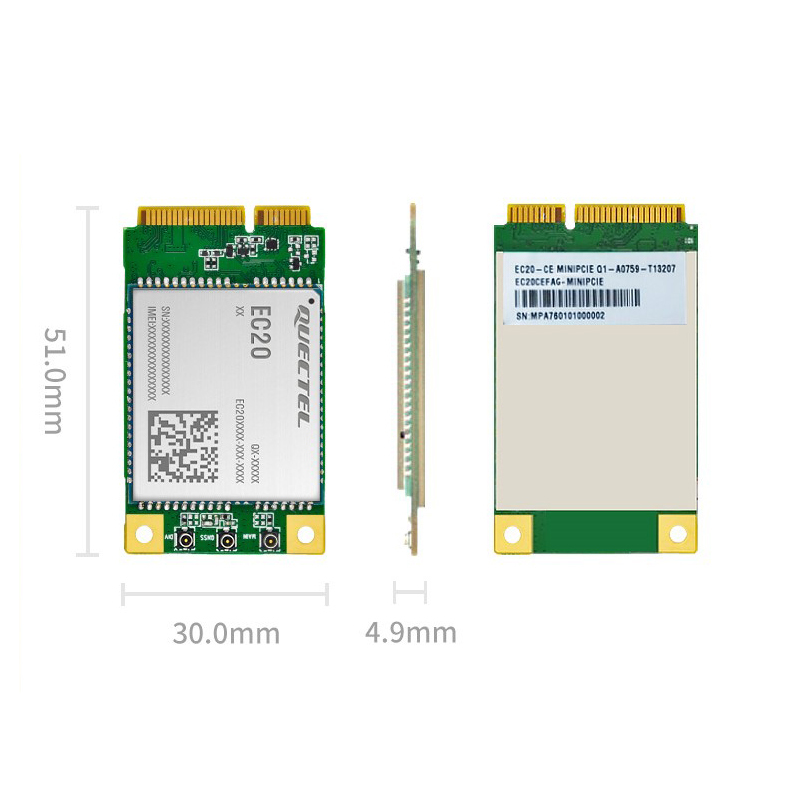

All Network 4G Positioning Module CAT4 Communication EC20CEHDLG-MINIPCIE-CB Images
