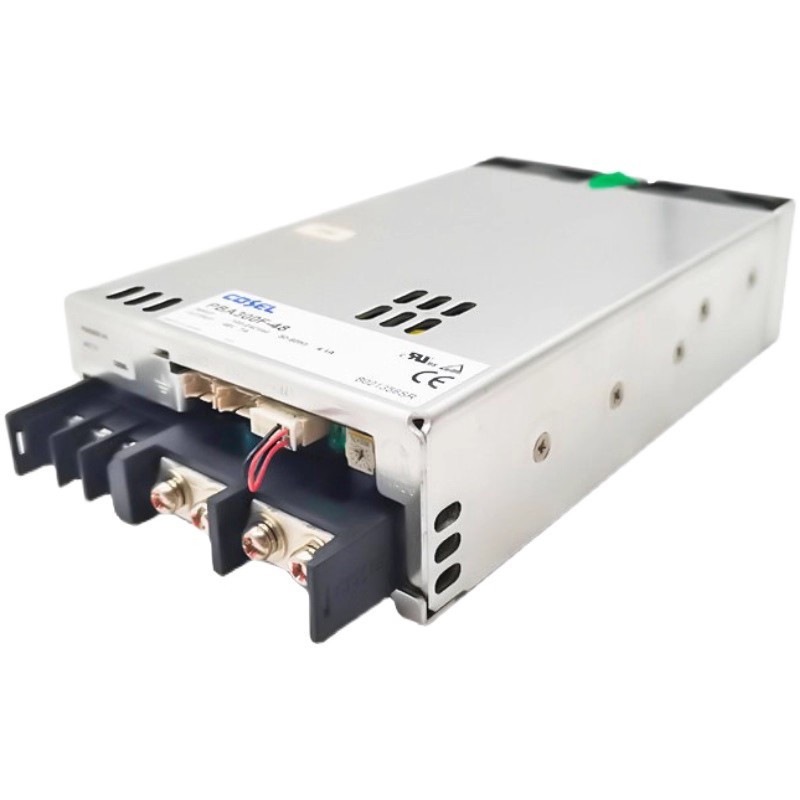

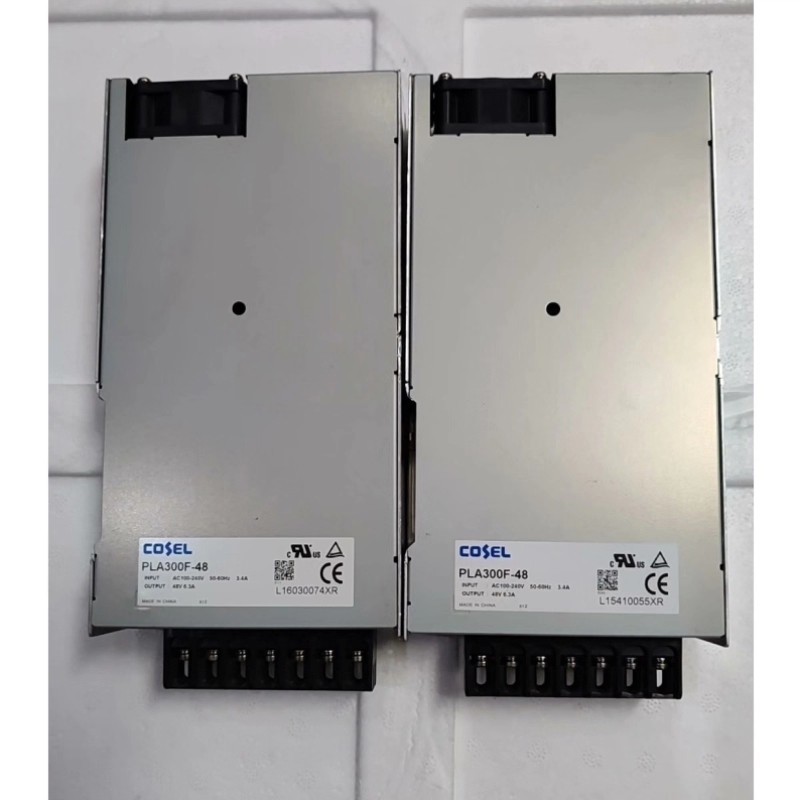

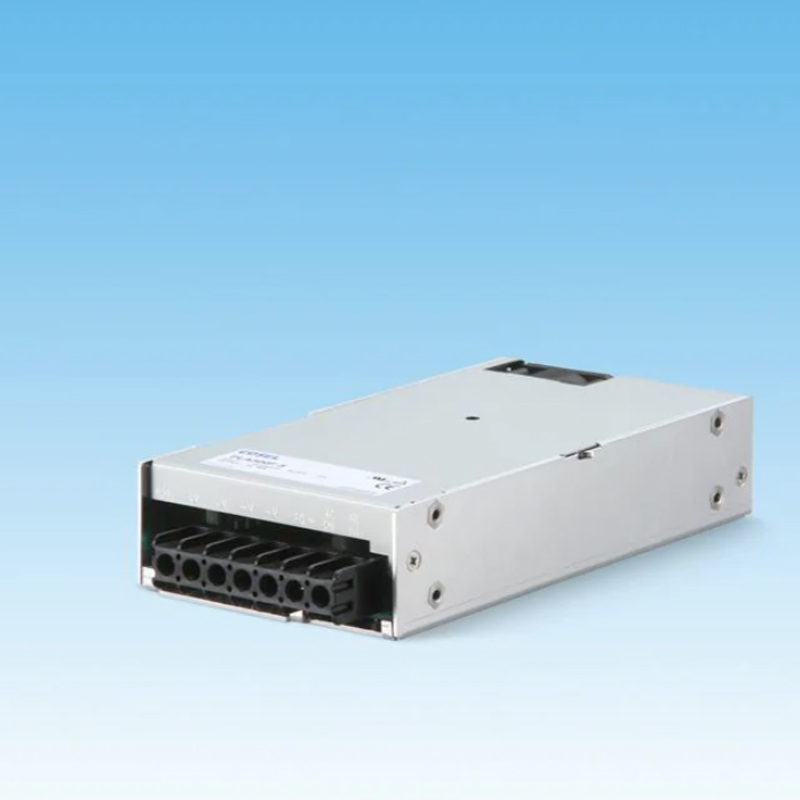

Switching Power Supplies module 300W 48V 1.7-3.4A AC-DC Power Supply PLA300F-48
SPECIFICATIONS
MODEL PLA15F-5 PLA15F-12 PLA15F-15 PLA15F-24
INPUT
VOLTAGE[V] AC85 - 264 1f (Output derating is required at AC85V - 115V. See 1.1 and 3.2 in Instruction Manual) *3
CURRENT[A]
ACIN 100V 0.4typ (Io=90%)
ACIN 115V 0.4typ (Io=100%)
ACIN 230V 0.25typ (Io=100%)
FREQUENCY[Hz] 50 / 60 (47 - 63)
EFFICIENCY[%]
ACIN 100V 72.5typ (Io=90%) 75.5typ (Io=90%) 77.0typ (Io=90%) 78.0typ (Io=90%)
ACIN 115V 73.5typ (Io=100%) 77.0typ (Io=100%) 78.5typ (Io=100%) 79.0typ (Io=100%)
ACIN 230V 75.5typ (Io=100%) 78.5typ (Io=100%) 79.5typ (Io=100%) 80.0typ (Io=100%)
INRUSH CURRENT[A]
ACIN 100V 16typ (Io=90%) Ta=25C at cold start
ACIN 115V 16typ (Io=100%) Ta=25C at cold start
ACIN 230V 32typ (Io=100%) Ta=25C at cold start
LEAKAGE CURRENT[mA] 0.30max (ACIN 115V / 240V, 60Hz, Io=100%, According to IEC60950-1 and DEN-AN)
OUTPUT
VOLTAGE[V] 5 12 15 24
CURRENT[A] 3 1.3 1 0.7
WATTAGE[W] ACIN 85-115V Output derating is required at ACIN 115V or less (refer to instruction manual 3.2)
ACIN 115V-264V 15.0 15.6 15.0 16.8
LINE REGULATION[mV] *4 20max 48max 60max 96max
LOAD REGULATION[mV] *4 40max 100max 120max 150max
RIPPLE[mVp-p] *1
0 to +50C 80max 120max 120max 120max-10 to 0C 140max 160max 160max 160max
Io=0 to 35% 160max 240max 240max 280max
RIPPLE NOISE[mVp-p] *1
0 to +50C 120max 150max 150max 150max-10 to 0C 160max 180max 180max 180max
Io=0 to 35% 240max 300max 300max 320max
TEMPERATURE REGULATION[mV] 0 to +50C 50max 120max 150max 240max-10 to +50C 60max 150max 180max 290max
DRIFT[mV] *2 20max 48max 60max 96max
START-UP TIME[ms] 200typ (ACIN 115V, Io=100%) *Start-up time is 700 ms typ for less than 1 minute of applying input again from turning off the input voltage.
HOLD-UP TIME[ms] 20typ (ACIN 115V, Io=100%)
OUTPUT VOLTAGE ADJUSTMENT RANGE[V] 4.50 to 5.50 10.80 to 13.20 13.50 to 16.50 21.60 to 26.40
OUTPUT VOLTAGE SETTING[V] 5.00 to 5.15 12.00 to 12.48 15.00 to 15.60 24.00 to 24.96
PROTECTION
CIRCUIT AND
OTHERS
OVERCURRENT PROTECTION Works over 105% of rating and recovers automatically
OVERVOLTAGE PROTECTION[V] 5.75 to 7.00 13.80 to 16.80 17.25 to 21.00 27.60 to 33.60
OPERATING INDICATION LED (Green)
REMOTE SENSING Not provided
REMOTE ON/OFF Not provided
ISOLATION
INPUT-OUTPUT AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At room temperature)
INPUT-FG AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At room temperature)
OUTPUT-FG AC500V 1minute, Cutoff current = 25mA, DC500V 50MW min (At room temperature)
ENVIRONMENT
OPERATING TEMP.,HUMID.AND ALTITUDE *5-20 to +70C, 20 - 90%RH (Non condensing), 3,000m (10,000 feet) max
STORAGE TEMP.,HUMID.AND ALTITUDE-20 to +75C, 20 - 90%RH (Non condensing), 9,000m (30,000 feet) max
VIBRATION 10 - 55Hz, 19.6m/s2 (2G), 3minutes period, 60minutes each along X, Y and Z axes
IMPACT 196.1m/s2 (20G), 11ms, once each X, Y and Z axes
SAFETY AND
NOISE
REGULATIONS
AGENCY APPROVALS UL60950-1, C-UL (CSA60950-1), EN60950-1, EN50178, UL508 (Except option -J) Complies with DEN-AN
CONDUCTED NOISE Complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
HARMONIC ATTENUATOR *8 Complies with IEC61000-3-2 class A
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
