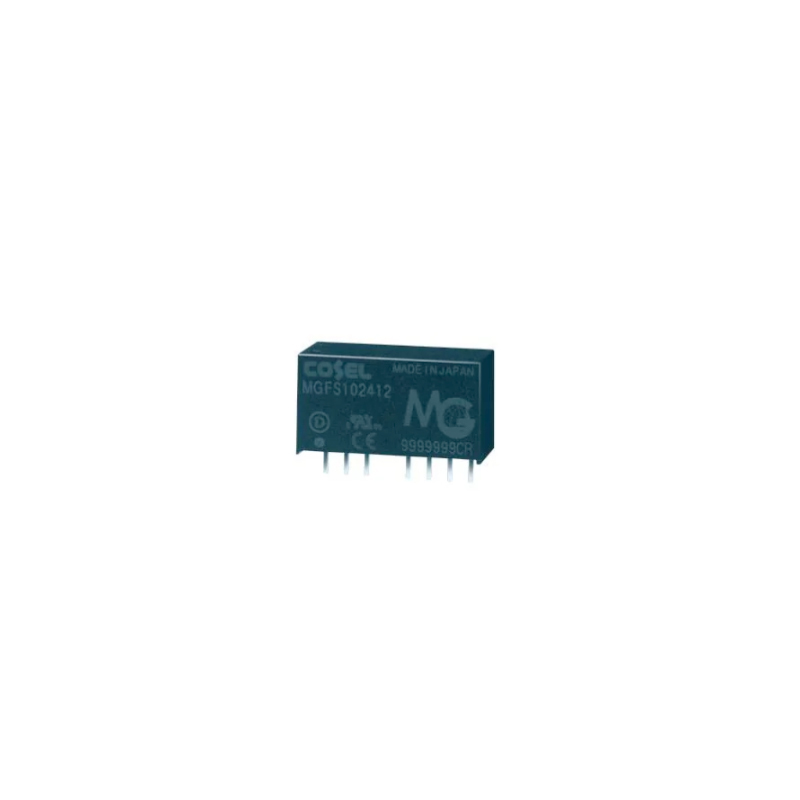

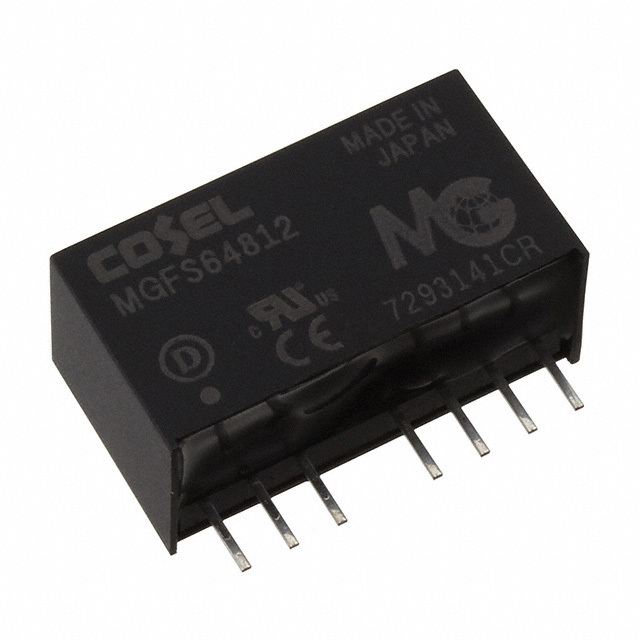

Isolated DC/DC Converters 10.5W 18-76Vin 15V 0.7A PCB SIP8 power module MGFS104815
MODEL MGFS1R5243R3 MGFS1R52405 MGFS1R52412 MGFS1R52415
MAX OUTPUT WATTAGE[W] 1.32 1.50 1.56 1.50
DC OUTPUT VOLTAGE[V] 3.3 5 12 15
CURRENT[A] 0.4 0.3 0.13 0.1
SPECIFICATIONS
MODEL MGFS1R5243R3 MGFS1R52405 MGFS1R52412 MGFS1R52415
INPUT
VOLTAGE[V] DC9 - 36(Surge voltage 50V,100ms max)
CURRENT[A] *1 0.072typ 0.079typ 0.079typ 0.077typ
EFFICIENCY[%] *1 77typ 80typ 83typ 82typ
OUTPUT
VOLTAGE[V] 3.3 5 12 15
CURRENT[A] 0.4 0.3 0.13 0.1
LINE REGULATION[mV] 20max 20max 48max 60max
LOAD REGULATION[mV] 20max 20max 48max 60max
RIPPLE[mVp-p] *2 120max 120max 150max 150max
RIPPLE NOISE[mVp-p] *2 200max 200max 200max 200max
TEMPERATURE
REGULATION[mV]-20 to +85C 50max 50max 150max 180max-40 to +85C 80max 80max 240max 290max
DRIFT[mV] *3 20max 20max 48max 60max
START-UP TIME[ms] 30max (Minimum input, Io=100%)
OUTPUT VOLTAGE SETTING[V] 3.21 - 3.42 4.90 - 5.21 11.64 - 12.36 14.55 - 15.45
PROTECTION
CIRCUIT OVERCURRENT PROTECTION Works over 105% of rating and recovers automatically
MODEL MGFS1R5483R3 MGFS1R54805 MGFS1R54812 MGFS1R54815
MAX OUTPUT WATTAGE[W] 1.32 1.50 1.56 1.50
DC OUTPUT VOLTAGE[V] 3.3 5 12 15
CURRENT[A] 0.4 0.3 0.13 0.1
SPECIFICATIONS
MODEL MGFS1R5483R3 MGFS1R54805 MGFS1R54812 MGFS1R54815
INPUT
VOLTAGE[V] DC18 - 76(Surge voltage 100V,100ms max)
CURRENT[A] *1 0.037typ 0.040typ 0.040typ 0.039typ
EFFICIENCY[%] *1 76typ 79typ 82typ 81typ
OUTPUT
VOLTAGE[V] 3.3 5 12 15
CURRENT[A] 0.4 0.3 0.13 0.1
LINE REGULATION[mV] 20max 20max 48max 60max
LOAD REGULATION[mV] 20max 20max 48max 60max
RIPPLE[mVp-p] *2 120max 120max 150max 150max
RIPPLE NOISE[mVp-p] *2 200max 200max 200max 200max
TEMPERATURE
REGULATION[mV]-20 to +85C 50max 50max 150max 180max-40 to +85C 80max 80max 240max 290max
DRIFT[mV] *3 20max 20max 48max 60max
START-UP TIME[ms] 30max (Minimum input, Io=100%)
OUTPUT VOLTAGE SETTING[V] 3.21 - 3.42 4.90 - 5.21 11.64 - 12.36 14.55 - 15.45
PROTECTION
CIRCUIT OVERCURRENT PROTECTION Works over 105% of rating and recovers automatically
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
