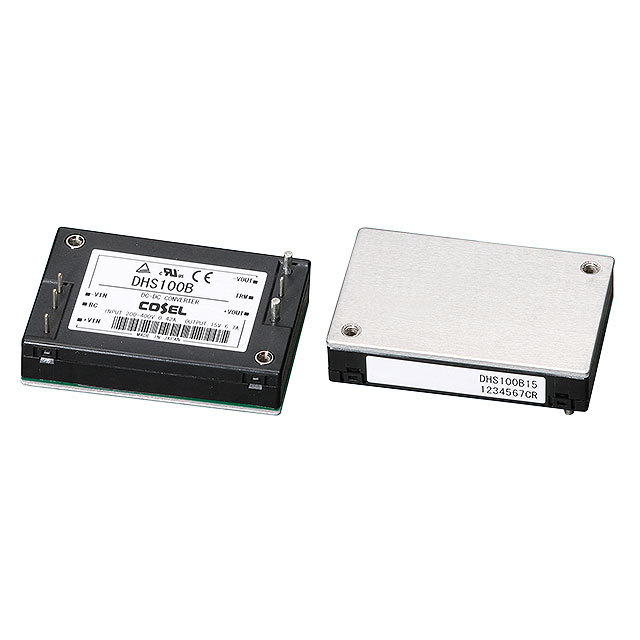

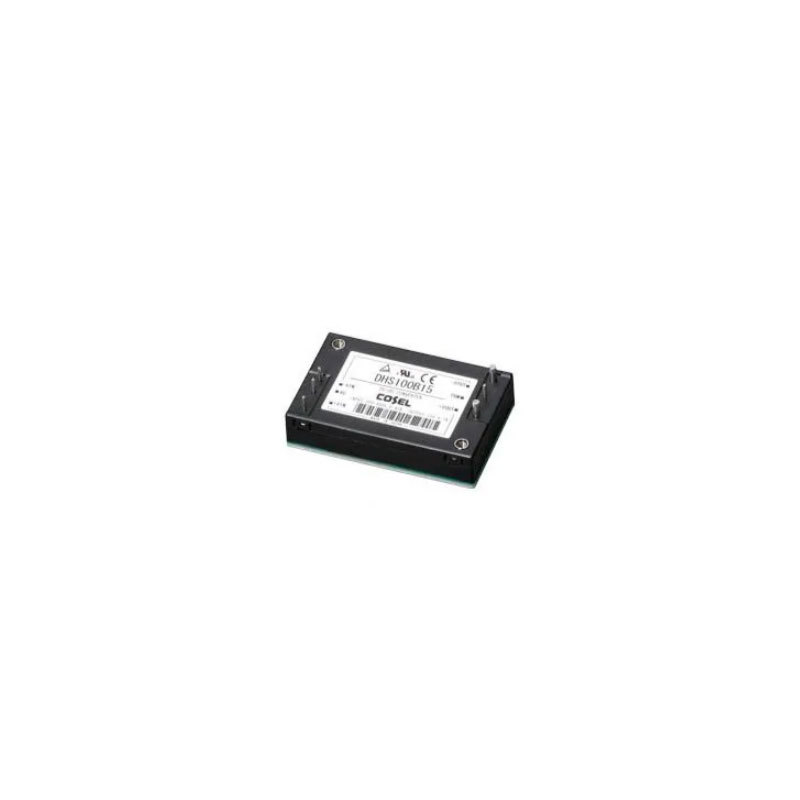

converter power module type Isolated DC/DC converter 100W 3.3V 20A DHS100B03
FeatureIdeal for distributed power systemsThin and small sizeBuilt-in overcurrent, overvoltage and thermal protection circuitsBuilt-in remote ON/OFFMounting hole (M3 tapped)CE markingLow Voltage DirectiveRoHS DirectiveUKCA markingElectrical Equipment Safety RegulationsRoHS RegulationsSafety agency approvalsUL60950-1, C-UL, EN62368-15-year warranty
Optional partsHeat sink
MODEL DHS50A05 DHS50A12 DHS50A15 DHS50A24MAX OUTPUT WATTAGE[W] 50.0 50.4 51.0 50.4DC OUTPUT 5V 10A 12V 4.2A 15V 3.4A 24V 2.1ASPECIFICATIONSMODEL DHS50A05 DHS50A12 DHS50A15 DHS50A24INPUTVOLTAGE[V] DC60 - 160CURRENT[A] *1 0.55A 0.55A 0.55A 0.55AEFFICIENCY[%] *1 84.0typ 86.0typ 86.0typ 86.0typOUTPUTVOLTAGE[V] 5 12 15 24CURRENT[A] 10 4.2 3.4 2.1LINE REGULATION[mV] 10max 24max 30max 48maxLOAD REGULATION[mV] 10max 24max 30max 48maxRIPPLE[mVp-p]0 to +100C*2 80max 120max 120max 120max-40 to 0C*2 120max 150max 150max 150max0 to 15% Load*2 160max 240max 240max 240maxRIPPLE NOISE[mVp-p]0 to +100C*2 120max 150max 150max 150max-40 to 0C*2 200max 200max 200max 250max0 to 15% Load*2 240max 300max 300max 300maxTEMPERATURE REGULATION[mV]0 to +65C 50max 120max 150max 240max-40 to +100C 100max 240max 300max 480maxDRIFT[mV] *3 20max 40max 60max 90maxSTART-UP TIME[ms] 200max (DCIN 110V, Io=100%)OUTPUT VOLTAGE ADJUSTMENT RANGE[V] *4Fixed (TRM pin open), adjustable by external VR or external voltage4.50 - 6.00 10.80 - 13.20 13.50 - 16.50 21.60 - 26.40OUTPUT VOLTAGE SETTING[V] 4.97 - 5.13 11.91 - 12.29 14.76 - 15.24 23.62 - 24.38PROTECTIONCIRCUIT ANDOTHERSOVERCURRENT PROTECTION Works over 105% of rating and recovers automaticallyOVERVOLTAGE PROTECTION[V] 6.30 - 7.60 13.90 - 17.55 17.25 - 21.75 27.60 - 34.80REMOTE SENSING nothingREMOTE ON/OFF Provided (Negative Logic L : ON, H :OFF)ISOLATIONINPUT-OUTPUT AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (20±15C)INPUT-FG AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (20±15C)OUTPUT-FG AC500V 1minute, Cutoff current = 100mA, DC500V 50MW min (20±15C)ENVIRONMENTOPERATING TEMP.,HUMID.AND ALTITUDE -40 to +100C (On aluminum base plate), 20 - 95%RH (Non condensing) (Refer to “Derating”), 3,000m (10,000 feet) maxSTORAGE TEMP.,HUMID.AND ALTITUDE -40 to +100C, 20 - 95%RH (Non condensing), 9,000m (30,000 feet) maxVIBRATION 10 - 55Hz, 49.0m/s2 (5G), 3minutes period, 60minutes each along X, Y and Z axis Complies with IEC61373 Category 1 Class BIMPACT 196.1m/s2 (20G), 11ms, once each along X, Y and Z axis Complies with IEC61373 Category 1 Class BSAFETY AGENCY APPROVALS UL60950-1, C-UL (CSA60950-1), EN62368-1OTHERSCASE SIZE/WEIGHT 58.4X12.7X37.3mm [2.3X0.5X1.47 inches] (WXHXD) / 60g maxCOOLING METHOD Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
