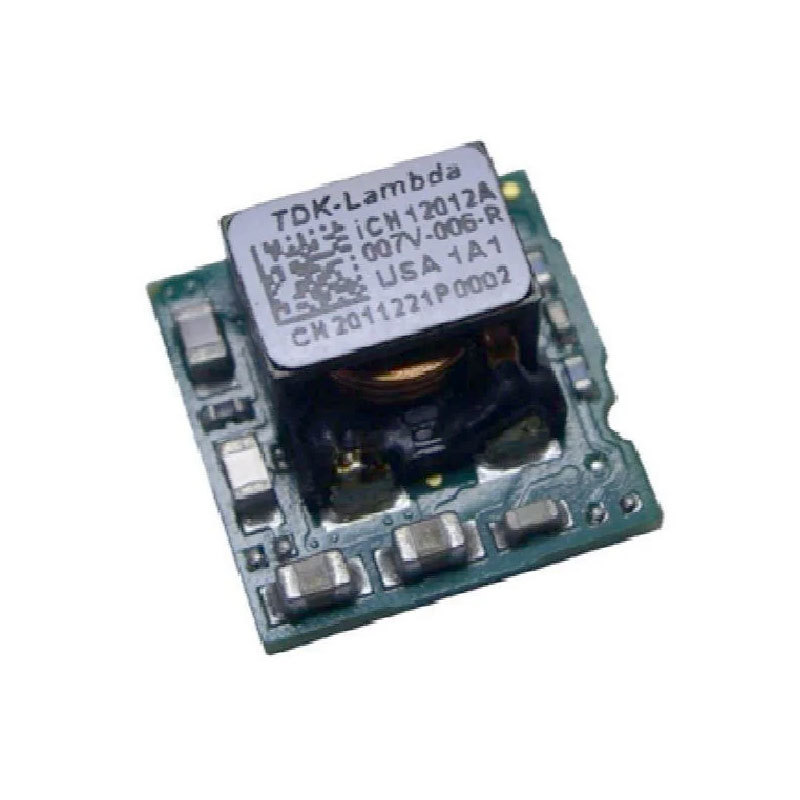

Non-isolated DC/DC converter 12Vin 85W 12A non-isolated SMT load point ICH12012A007V-007-R
The iCH series of non-isolated Point-Of-Load (POL) converters provide localized voltage conversion from either a 5V or 12V bus. With its wide input and wideoutput voltage adjustment range, this compact-size and surface-mountable DC-DC module can deliver up to 85W making it a versatile solution for various boardmount power requirements.
Features Benefits• DOSA Compatible Footprint• Surface Mountable and Reflow Solder Compatible• Constant Switching Frequency• No External Loop Tuning Components Needed• Excellent Transient Response• Established Industry Footprint / Multisource• Ease of Manufacturing and Assembly• Predictable EMI• Simplifies Deployment and Saves Board Space• Stable / Reliable Output During Dynamic Load
Model iCHInputInput Voltage Range Vdc 4.5 - 14Input Current (max) A 12Turn-On Input Voltage (typ) Vdc 4.2Turn-Off Input Voltage (typ) Vdc 4.0Efficiency (typical) % 88.5 - 97Safety Certifications and Markings - IEC/UL/CSA/EN 62368-1, 60950-1, CE Mark and UKCA MarkOutputOutput Voltage Initial Setpoint % ± 2Output Voltage Tolerance % ± 3Line Regulation (typ) mV 5Load Regulation (typ) mV 6Output Current (max) A 12 (1)Output Power (max) W 85External Load Capacitance uF 200 - 2000Ripple & Noise (typ) mVpp 15Transient Response 150 mV, 50 μs (25% to 75% step Load; 10A/μs, Vo = 1.8V)Switching Frequency (fixed) kHz 500Overcurrent Protection Threshold (Hiccup) A 22EnvironmentalOperating Temperature (Tc) °C -40 to 115Storage Temperature °C -55 to 125Humidity (non condensing) %RH 10 - 95Cooling - Convection or forced air (See product specifications for derating)Isolation Voltage (Input to Output) Vdc NAIsolation Resistance MΩ NAShock - MIL-STD-202G, Method 213B, Test Condition IVibration MIL-STD-202G, Method 201AOtherWeight (max) g 2.5Size (LxWxH) inch 0.48 x 0.48 x 0.335 mm 12.2 x 12.2 x 8.5Moisture Sensitivity Level MSL 2MTBF - Telcordia SR-332 (100% Load, 40°C) MHrs > 15Warranty yrs 3
